Nanosecond laser Mesa PIV solid-state green laser for PIV applications-Amplitude
Jun 24 , 2023Nanosecond laser Mesa PIV solid-state green laser for PIV applications

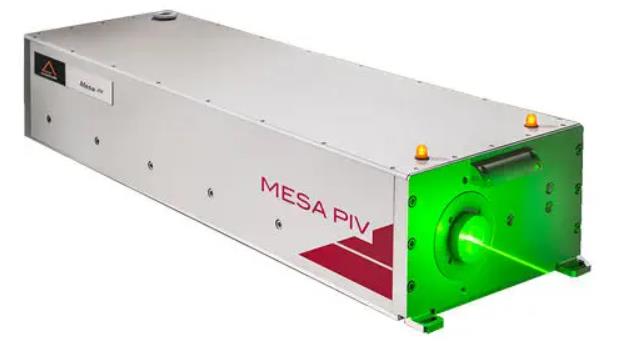

Mesa PIV is a dual oscillator/single head, high repetition rate, diodepumped Nd:YAG laser. It offers ultimate flexibility for PIV and other dual output applications.
The combination of two oscillators allows complete control of pulse separation and pulse energy. Both oscillators in the Mesa PIV are identical in optical design giving temporally and spatially matched pulses for the highest degree of cross-correlation. Each oscillator can be independently triggered via TTL inputs. As an option, a compact, external combination box can be directly attached to the laser to make access to the beam combination optics easier and safer for the rest of the laser system. Applications Industry: > Stent/Glass/PCB/Fine Metal Cutting > LCD/Solar Edge Deletion > Marking > Wafer Trimming > Micro-hole Drilling > Ceramics Scribing > Fine Wire Stripping > Diamond/Gemstone Processing Science: > Ti:Sapphire pumping > Particle Image Velocimetry (PIV) > Combustion Analysis > Laser Induced Fluorescence > LIDAR > Resonance Raman Spectroscopy > Chemical Analysis of Macromolecules > Laser Microprobe Analysis Key Features > 18 mJ total energy at 1-6 kHz > 120 W average power at 10 kHz > Ideal for Particle Image Velocimetry > Independent external trigger for each oscillator > Compact & rugged package designed for 24/7 operation > Record 3 min. diode module replacement with no realignment necessary > Proprietary optical cavity design for optimal beam quality
RFH Laser is a well -known laser brand supplier in China
RFH 35watt green laser cutting glass with smooth edges
Expert III 532 series green DPSS laser, developed and produced by RFH, covers 35w in laser power with short pulse width (<25ns@50K) ,superior beam quality (M²<1.2) and perfect laser spot quality (beam circularity >90%).It is perfect for glass marking,thin film etching and surface treatment for most of the metals and non-metal materials, such as removing the oxide layer from the metal surface
