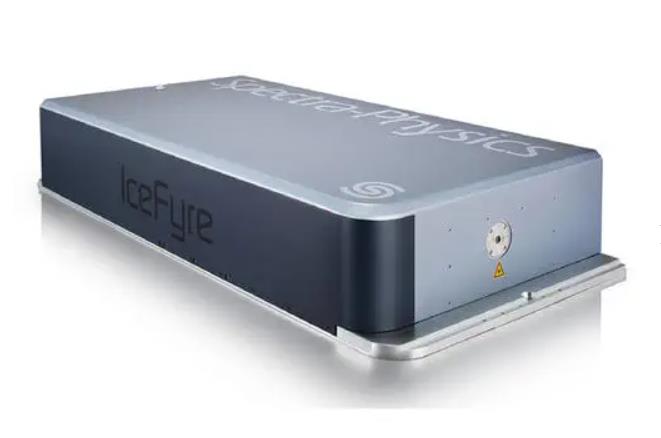

Versatile UV, Green and IR Picosecond Lasers IceFyre® series Spectra-Physics
Jun 24 , 2023Versatile UV, Green and IR Picosecond Lasers IceFyre® series Spectra-Physics
Versatile UV, Green and IR Picosecond Lasers: The New Standard for Picosecond Micromachining • Highest power at high repetition rates IR, green and UV models • Industry leading cost-performance • Unprecedented pulse control • Most compact It's in the Box laser • 24/7 industrial reliability Applications • OLED Displays Manufacturing • 5G PCB Cutting and Drilling • LEDs / Semiconductors Manufacturing • Ceramics Cutting, Drilling and Scribing • Solar / Photovoltaics Manufacturing • Other Industrial Manufacturing Overview IceFyre® redefines picosecond micromachining lasers with a patent-pending design to achieve exceptional performance and unprecedented versatility at industry leading cost-performance. Based on Spectra-Physics’ It’s in the Box™ design, IceFyre integrates laser and controller into the industry’s smallest package. Exceptional Performance and Unprecedented Versatility The new IceFyre UV50 is the highest performing UV ps laser on the market, providing >50 W of UV output power at 1.25 MHz (>40 μJ) with 100’s μJ pulse energies in burst mode, and pulse widths of 10 ps. The IceFyre UV50 sets new standards in power and repetition rates from single shot to 10 MHz. The IceFyre UV30 offers >30 W of typical UV output power with pulse energy >60 µJ (greater pulse energies in burst mode) and delivers exceptional performance from single shot to 10 MHz. The IceFyre GR50 delivers >50 W of green output power at pulse energy >100 µJ at 500 kHz. The IceFyre IR50 outputs >50 W of IR power at 400 kHz single pulse and delivers exceptional performance from single shot to 10 MHz.
RFH Laser is a well -known laser brand supplier in China
Glass Laser Engraving & Etching with RFH 12 watt uv laser module
Expert III 355 series UV DPSS laser, developed and produced by RFH, covers 10w-15w in laser power with short pulse width (<20ns@40K) ,superior beam quality (M²<1.2) and perfect laser spot quality (beam circularity >90%). It is widely used in PE/PCB/FPC cutting, glass & sapphire cutting, drilling, scribing & cutting used in high precision micromaching areas.
