Basic Principles of UV Marking Machine

In the field of modern precision processing, because the traditional laser marking machine uses laser thermal processing technology, the development of fineness is limited, and the emergence of ultraviolet laser marking machine breaks this deadlock, which uses a kind of cold processing Process, the processing process is called "photoetching" effect, "cold processing" (ultraviolet) photons with high load energy can break the chemical bonds in the material or the surrounding medium, so that the material undergoes non-thermal process damage, and the inner layer and nearby There is no heating or thermal deformation in the area, and the final processed material has smooth edges and extremely low carbonization, so the fineness and thermal influence are minimized, which is a great leap forward in laser technology.

The reaction mechanism of ultraviolet laser processing is realized by photochemical ablation, that is, relying on laser energy to break the bonding between atoms or molecules, making them gasify and evaporate as small molecules. The focused spot is extremely small, and the processing heat-affected zone is very small, so it can be used for ultra-fine marking and special material marking.

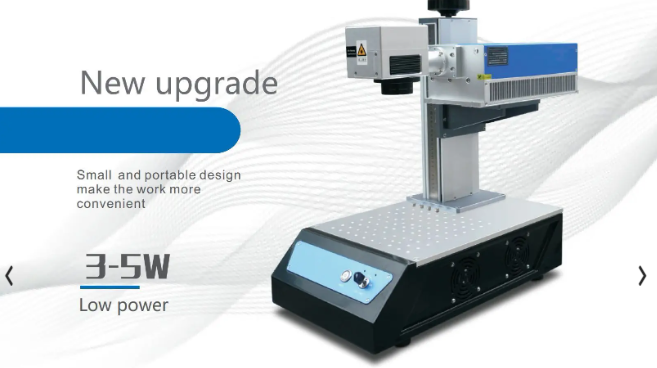

3W 5W Laser Marking Machine Characteristic:

The UV desktop air-cooled laser has three output wavelengths for customers to choose, 355nm UV. For 355nm ultraviolet laser, the average output power is 1-5W optional. The laser repetition frequency is adjustable within the range of 20KHz-200KHz, and the laser beam quality M square factor is less than 1.2. One-piece design, the internal drive circuit board is integrated, and the laser output can be obtained by connecting the external 12V power supply. Without adjusting frame manufacturing process, the laser has stable mechanical performance and can run stably for a long time.

Today,we will recommend you RFH UV laser brand from China.

RFH UV Laser Marking Module used for paint stripping on plastic

S9 Series 3W 5W 10W UV Laser
