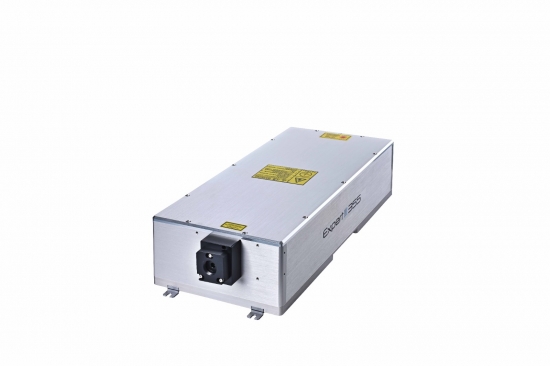

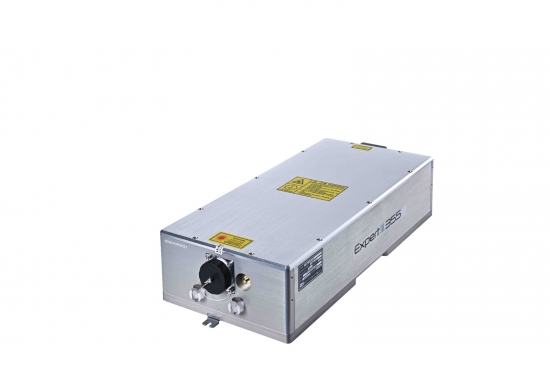

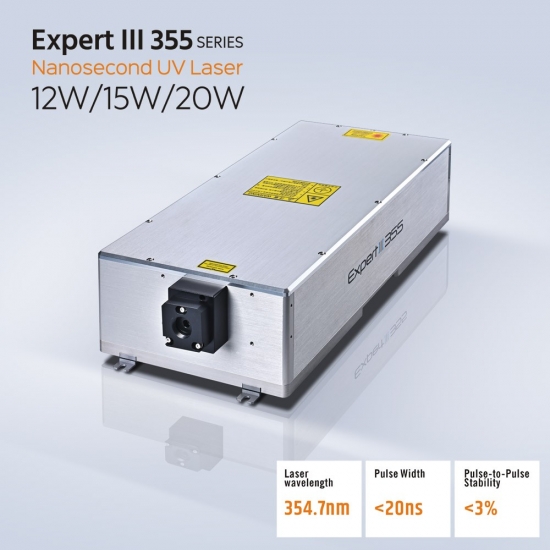

10W-15W uv laser

Expert III 355-15-50

Specializing in the field of high-precision processing, EXPERTIII 355-15-50 series lasers to provide you with a comprehensive and high-quality solution. Whether it is PE/PCB/FPC cutting, or glass, sapphire cutting, or high-definition micro-processing of drilling, marking, cutting, etc. , our laser can meet your needs. Our laser uses an efficient wavelength of 354.7 nm, covering a wide range of repetitive frequencies (10 khz to 200 khz) . Regardless of your application scenario, we provide excellent beam quality (m & LT; 1.2) . Moreover, we guarantee the consistency of beam quality in all frequency range. To minimize the heat-affected region, our laser uses a pulse width of less than 20ns@40k. This means that even at high frequencies, the processing is still excellent. In addition, we also use a unique q-switched control technology to meet the needs of various laser applications, in order to ensure the long life and stable operation of the laser, we also use the internal cavity self-purification system. This makes our laser not only long life, but also stable and reliable operation, in order to facilitate the operation and monitoring, we use the digital intelligent power control technology. This makes your operation easier and allows you to monitor the status of the laser in real time; in addition, our laser also supports communication with the computer and can be controlled externally through the R5232. This gives you more convenience and flexibility in your work. Our EXPERTIII 355-15-50 laser uses an integrated design to provide you with convenient equipment molding. Whether it is a small studio or a large production line, our laser can be perfectly adapted to help you achieve better results.

  • Laser Wavelength:

    354.7 nm
  • Average Output Power :

    15w @40kHz
  • Pulse Width:

    <25@40kHz
  • Pulse Repetition Rate :

    20-200KHz
  • Spatial Mode:

    TEMoo
  • Beam Quality (㎡) :

    <1.2
  • Beam Diameter:

    1.0±0.2mm
  • Beam Full Divergence Angle :

    <1.1mrad
  • Beam Circularity:

    >90%
  • Pulse-To-Pulse Stability:

    <3% RMS/@40KHz
  • Average Power Stability :

    <5% RMS/8hr
  • Beam-Pointing Drift:

    <25 μrad/℃
  • Polarization Ratio:

    >100:1
  • Polarization Orientation:

    Horizontal
  • Operating Temp. & RH:

    10 to 30 ℃<80%
  • Storage Temp. & RH:

    -20 to 65℃<90%
  • Electricity Requirement :

    100-240 VAC 50/60Hz
  • Power Consumption:

    <800 W
  • Product Detail
  • Video

Specializing in the field of high-precision processing, EXPERTIII 355-15-50 series lasers to provide you with a comprehensive and high-quality solution. Whether it is PE/PCB/FPC cutting, or glass, sapphire cutting, or high-definition micro-processing of drilling, marking, cutting, etc. , our laser can meet your needs. Our laser uses an efficient wavelength of 354.7 nm, covering a wide range of repetitive frequencies (10 khz to 200 khz) . Regardless of your application scenario, we provide excellent beam quality (m & LT; 1.2) . Moreover, we guarantee the consistency of beam quality in all frequency range. To minimize the heat-affected region, our laser uses a pulse width of less than 20ns@40k. This means that even at high frequencies, the processing is still excellent. In addition, we also use a unique q-switched control technology to meet the needs of various laser applications, in order to ensure the long life and stable operation of the laser, we also use the internal cavity self-purification system. This makes our laser not only long life, but also stable and reliable operation, in order to facilitate the operation and monitoring, we use the digital intelligent power control technology. This makes your operation easier and allows you to monitor the status of the laser in real time; in addition, our laser also supports communication with the computer and can be controlled externally through the R5232. This gives you more convenience and flexibility in your work. Our EXPERTIII 355-15-50 laser uses an integrated design to provide you with convenient equipment molding. Whether it is a small studio or a large production line, our laser can be perfectly adapted to help you achieve better results.
