10W-15W uv laser

H9-532-20-50

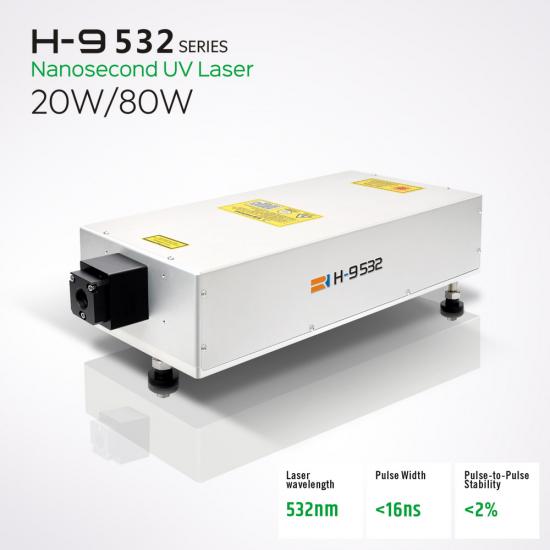

The RFH 532 green laser, specifically the 20W solid-state water-cooled integrated laser, is an advanced solution designed to meet diverse industrial and scientific requirements. This innovative system features a power supply and laser head connected by cables ranging from 2 to 3 meters in length, ensuring flexibility and ease of integration into existing setups.



We express our sincere gratitude for selecting the 20W solid-state water-cooled integrated laser series. Our commitment is to provide high-reliability, high-quality, and cost-effective laser solutions tailored to your needs. By choosing our green laser technology, you are opting for a product that excels in performance and durability, backed by our comprehensive after-sales service and efficient technical support.



As you embark on building your own laser control system, rest assured that we are here to assist you every step of the way. Our expert team is dedicated to ensuring that you achieve optimal results with minimal downtime, ultimately enhancing your operational efficiency. Thank you for placing your trust in our technology; we look forward to a successful partnership.

  • Item Number:

    H9-532-20-50
  • Laser Wavelength:

    532nm
  • Average Output Power :

    >20W
  • Pulse Width:

    <20ns
  • Pulse Repetition Rate :

    20-200 KHz
  • Spatial Mode:

    TEMoo
  • Beam Quality (㎡) :

    <1.3
  • Beam Diameter:

    0.8±0.1 mm
  • Beam Full Divergence Angle :

    <3 mrad
  • Beam Circularity:

    >90%
  • Pulse-To-Pulse Stability:

    <2%
  • Average Power Stability :

    <3%
  • Beam-Pointing Drift:

    <25%
  • Polarization Ratio:

    >100:1
  • Polarization Orientation:

    vertical
  • Operating Temp. & RH:

    10 to 30&<80
  • Storage Temp. & RH:

    -20 to 65& <90
  • Electricity Requirement :

    100-240
  • Power Consumption:

    <800
  • Product Detail
  • Video

The RFH 532 green laser, specifically the 20W solid-state water-cooled integrated laser, is an advanced solution designed to meet diverse industrial and scientific requirements. This innovative system features a power supply and laser head connected by cables ranging from 2 to 3 meters in length, ensuring flexibility and ease of integration into existing setups.



We express our sincere gratitude for selecting the 20W solid-state water-cooled integrated laser series. Our commitment is to provide high-reliability, high-quality, and cost-effective laser solutions tailored to your needs. By choosing our green laser technology, you are opting for a product that excels in performance and durability, backed by our comprehensive after-sales service and efficient technical support.



As you embark on building your own laser control system, rest assured that we are here to assist you every step of the way. Our expert team is dedicated to ensuring that you achieve optimal results with minimal downtime, ultimately enhancing your operational efficiency. Thank you for placing your trust in our technology; we look forward to a successful partnership.
