10W-15W uv laser

The Art of Precision: RFH Brand Transforms Ceramic Marking with Solid State Green Laser

In the vast realm of technological advancements, few innovations have captured the essence of precision quite like laser technology. Among the plethora of laser devices available on the market, RFH brand has emerged as a veritable trailblazer with its remarkable solid state green laser marking ceramic system, revolutionizing the art of ceramic marking.



  • Laser Wavelength:

    532nm
  • Average Output Power :

    5W/10W @30kHz
  • Pulse Width:

    <14ns @30kHz
  • Pulse Repetition Rate :

    10-200kHz
  • Spatial Mode:

    TEM00
  • Beam Quality (㎡) :

    <1.2
  • Beam Diameter:

    0.8±0.2mm Measured at window
  • Beam Full Divergence Angle :

    <1.2mrad
  • Beam Circularity:

    >90%
  • Pulse-To-Pulse Stability:

    <2% RMS/@30kHz
  • Average Power Stability :

    <5% RMS/8hr
  • Beam-Pointing Drift:

    <30μrad/℃
  • Polarization Ratio:

    >100:1
  • Polarization Orientation:

    Horizontal
  • Operating Temp. & RH:

    10℃ to 30℃ | <80%
  • Storage Temp. & RH:

    -20℃ to 65℃ | <90 %
  • Electricity Requirement :

    100-240VAC |50/60Hz | Single phase
  • Power Consumption:

    <500W
  • Warranty :

    18months
  • Product Detail
  • Video

The Art of Precision: RFH Brand Transforms Ceramic Marking with Solid State Green Laser

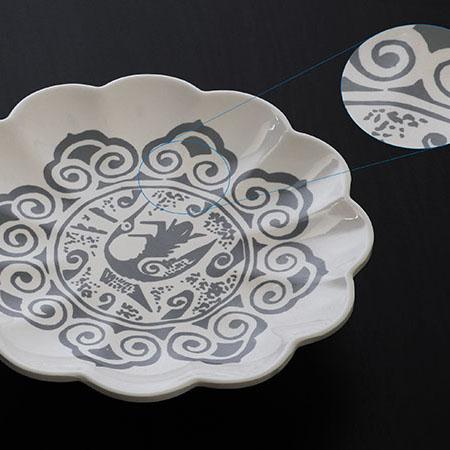

Ceramic Marking

In the vast realm of technological advancements, few innovations have captured the essence of precision quite like laser technology. Among the plethora of laser devices available on the market, RFH brand has emerged as a veritable trailblazer with its remarkable solid state green laser marking ceramic system, revolutionizing the art of ceramic marking.

Ceramic, a timeless and versatile material revered for its exquisite beauty and durability, has found a new ally in RFH's cutting-edge green laser technology. This advanced system employs a solid state green laser, which emits a vibrant and precise beam of light, capable of intricately etching designs on ceramic surfaces with unparalleled finesse.



Gone are the days of cumbersome and imprecise marking methods. RFH brand has harnessed the power of this green laser technology to create a seamless and efficient process that exhibits true artistry. The laser beam, guided by state-of-the-art optics, dances gracefully across the ceramic canvas, performing intricate patterns and designs with impeccable accuracy.



What sets RFH's solid state green laser apart is its ability to create marks that are not only visually appealing but also permanent. The laser's high intensity ensures that the ceramic surface is etched deeply and with lasting clarity, resulting in markings that withstand the test of time and resist fading or wearing down.



Moreover, RFH's commitment to excellence extends beyond the laser technology itself. Their devices are meticulously designed and built to withstand the rigors of industrial use, ensuring reliability and longevity. With advanced features, such as air cooling and user-friendly interfaces, RFH brand solid state green laser marking systems offer a seamless experience for both novices and professionals alike.



In the realm of ceramics, the possibilities are limitless. From decorative pieces to functional objects, RFH's solid state green laser technology unlocks a world of creative opportunities. Intricate patterns, logos, and even personalized engravings can be effortlessly etched onto ceramic surfaces, elevating them to the realm of pure artistic expression.

The RFH brand's solid state green laser marking system has not only revolutionized the way we perceive ceramic marking but has also redefined the boundaries of precision and craftsmanship. With its unparalleled performance, reliability, and artistic capabilities, RFH has established itself as the go-to choice for those seeking to embark on a journey of ceramic mastery.



In this age of technological innovation, RFH brand stands at the forefront, proudly showcasing the merger of artistry and precision. As ceramic marking evolves into an art form, RFH's solid state green laser technology continues to push the boundaries, empowering artists, craftsmen, and enthusiasts alike to embark on their own creative odysseys in the realm of ceramic aesthetics.
