10W-15W uv laser

10W UV lasers source are used for medical plastics drilling, cutting, and marking

Recently, a team from Foshan conducted an inspection of 10W ultraviolet laser, hoping to use it on new medical products.



This new medical product has a high requirements for punching, and the accuracy range is very small, so many products have been eliminated during the search process. The 10W ultraviolet laser fully meets their requireme

  • Laser Wavelength:

    354.7nm
  • Average Output Power :

    3W-10W @30kHz
  • Pulse Width:

    <12ns @ 30kHz
  • Pulse Repetition Rate :

    10-200kHz
  • Beam Quality (㎡) :

    <1.2
  • Beam Diameter :

    0.8±0.2mm Measured at window
  • Beam Full Divergence Angle :

    <2mrad
  • Beam Circularity :

    >90%
  • Pulse-to-Pulse Stability :

    <2% RMS/@30kHz
  • Average Power Stability :

    <5% RMS/8hr
  • Beam-Pointing Drift :

    <30μrad/℃
  • Polarization Ratio :

    >100:1
  • Polarization Orientation :

    Horizontal
  • Operating Temp. & RH :

    10℃ to 30℃ | <80%
  • Storage Temp. & RH) :

    -20℃ to 65℃ | <90 %
  • Electricity Requirement :

    100-240VAC |50/60Hz | Single phase
  • Power Consumption :

    <500W
  • Warranty :

    18months
  • Product Detail
  • Video

uv laser

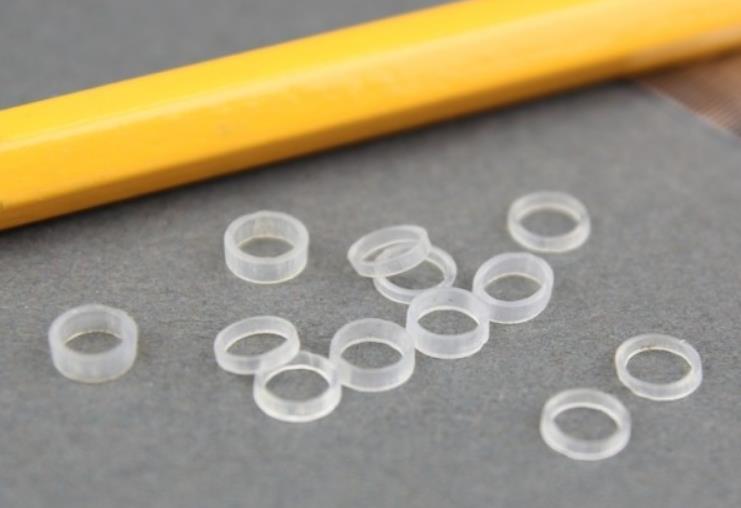

10W UV lasers source are used for medical plastics to punch, cut, and mark



Plastics have very important applications in our lives, and today, with the continuous development of medical resources, the opening of the new crown epidemic has also made medical resources in a more tense form. Plastic medical supplies include blood bags, oxygen suction tubes, breathing masks, urine bags, and so on. These medical plastic supplies inevitably need punching techniques, and the performance in the past ten years has made it the first choice for manufacturers.



Recently, a team from Foshan conducted an inspection of 10W ultraviolet laser, hoping to use it on new medical products.



This new medical product has a high requirements for punching, and the accuracy range is very small, so many products have been eliminated during the search process. The 10W ultraviolet laser fully meets their requirements. In the test mode, 10W UV laser shows amazing strength.



First of all, its punching speed is extremely fast, and it will not cause damage to the other parts of the material during the punching process, reducing the cost.



Secondly, the output of 10W UV laser is stable. In addition to 24 hours, it maintains a punch accuracy of about 0.2mm, which fully meets the requirements of this product.



Finally, it provides technical support for the team to make the operations such as punching more simple and convenient.



The advancement and expansion of medical resources is very important for our country's development and the happiness of the people. It is an honor to be able to participate in the new types of research and development and production of medical products. It is also a way and manifestation of social responsibility.



To meet the market demand, RFH newly developed S9 series UV laser in 2020. Comparing with its kinds, S9 series UV laser features with rugged sealed cavity, extremely compact size, simple and robust, high stability, high efficiency, high reliability and excellent laser beam quality.Its compact design suggests no necessity in building big light path, which greatly reduces space and cost and makes it easy to be installed into UV laser marking machines. In addition, S9 series cavity structure is more stability and more excellent scalability, which means the same laser cavity can be produces multi-power lasers , and the stability of different power ranges is greatly improved.

UV LASER



S9 series uv laser characteristics:

1. 355 nm output wavelength, Up to 200 Hz repetition rate; laser power ranging from 3w-10w; Continuous tuning of repetition rate while maintaining constant pulse energy, superior beam pointing and energy stability make the S9 the first choice for micromachining, marking and thin film removal applications



2. Exceptional beam quality (M²<1.2) ,absolutely assured in all repetition rates; relatively short pulse width <12ns@30 with little heat transfer to surrounding material; perfect beam spot quality(Beam Circularity>90%)

Close to Gaussian smooth beam profile with low value M² < 1.2 and good focusability are beneficial for applications such as



3. Unique Q-switching technology, adapts a variety of control requirements of laser applications;Online refreshment for harmonic coupling technology;Excellent long term power stability Rugged sealed cavity, Extremely compact size, Simple and robust



4. Digital control technology for the driver,  RS232 control interface ensures easy control and integration with laser marking equipment



5. This laser adopts one - style design with compact and reasonable structure, easy installation.

Easy to transport and saves space due to compact and light design



Water cooling,cost-effective and reliable end-pumping technology and amplifier-free DPSS design guarantee easy operation and alignment simple installation and low maintenance costs



6. Industrial production process control technology,provides quality stable products.

S9 uv laser

S9 355nm UV LASER

 RFH - The leading industrial solid-state laser manufacturer



For over 13 years with excellent long term stability and exceptional good beam quality



Production in dust-free plant & rigorous quality control system

From purchasing, pre-production quality check, assembling, finished product testing, warehouse-in inspection, pre-delivery testing to after-sales service, each step is under control to make sure product quality and consistency in both machine parameters and actual running parameters. This is what makes RFH laser lasts longer than its peers.

RFH LASER



Top professional team, independent R&D in laser oriented power supply control system

There is a one-to-one correspondence between power supply and laser. The stability of power supply control system determines if the laser can maximize its performance during operation. RFH Laser has independent R&D in power supply technique which enables timely update and improvement of power supply control system module based on the laser’s need. 12-year experience in R&D and a top professional team make RFH laser a reliable and stable laser system.

LASER POWER SUPPLY



Core components of oversea brands with guaranteed quality

Pumping, Q-switching and other core components adopt oversea brands. Work with top brand component suppliers of home and abroad. Each component is guaranteed with its quality from the beginning of materials purchasing. This is why users can trust RFH laser.

5W uv laser



Power supply+laser head+cooling system sold in a group

Being client-oriented, RFH offers proposal of selling the whole laser system in a group so that the laser system can maximize its performance while maintaining its stability.

uv  laser



Full-digital display, supporting communication with computer, capable of laser’s remote control

Each laser developed and produced by RFH can always remain high quality in industrial and extreme conditions of scientific research. With stable beam quality, high efficiency, best cost performance and high reliability, RFH has earned good reputation in different industries at home and abroad. After 12-year development, RFH has become a reputed brand in nanosecond laser industry.
