10W-15W uv laser

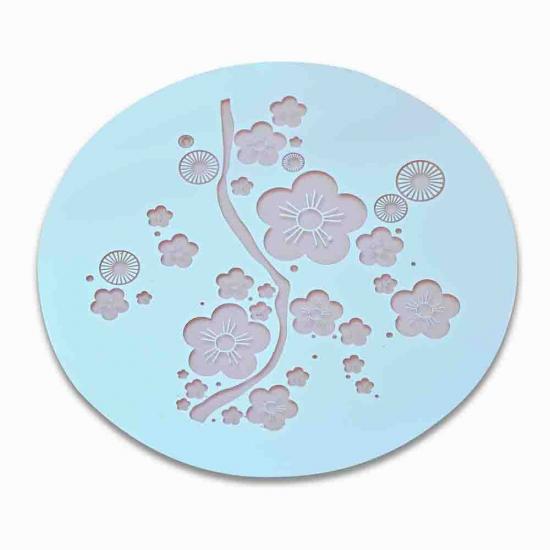

355nm UV laser marking LOGO on colored glass

UV laser marking is a popular technique used to create high-quality and permanent logos on colored glass surfaces. This process involves using a UV laser beam to remove or alter the color of the glass, resulting in a contrasting and visually appealing logo.



  • Laser Wavelength:

    354.7nm
  • Average Output Power :

    3W-10W @30kHz
  • Pulse Width:

    <12ns @ 30kHz
  • Pulse Repetition Rate :

    10-200kHz
  • Beam Quality (㎡) :

    <1.2
  • Beam Diameter :

    0.8±0.2mm Measured at window
  • Beam Full Divergence Angle :

    <2mrad
  • Beam Circularity :

    >90%
  • Pulse-to-Pulse Stability :

    <2% RMS/@30kHz
  • Average Power Stability :

    <5% RMS/8hr
  • Beam-Pointing Drift :

    <30μrad/℃
  • Polarization Ratio :

    >100:1
  • Polarization Orientation :

    Horizontal
  • Operating Temp. & RH :

    10℃ to 30℃ | <80%
  • Storage Temp. & RH) :

    -20℃ to 65℃ | <90 %
  • Electricity Requirement :

    100-240VAC |50/60Hz | Single phase
  • Power Consumption :

    <500W
  • Warranty :

    18months
  • Product Detail
  • Video

uv laser

UV laser marking is a popular technique used to create high-quality and permanent logos on colored glass surfaces. This process involves using a UV laser beam to remove or alter the color of the glass, resulting in a contrasting and visually appealing logo.

UV laser marking glass



To begin with, UV laser marking is a non-contact process, which means that the glass surface remains intact and undamaged during the marking process. This is particularly important when working with delicate materials like colored glass, as it helps to preserve the integrity of the object.



laser engraving glss

The UV laser used for marking on colored glass operates at a specific wavelength that is absorbed by the glass material. This absorption causes localized heating, which leads to the removal or alteration of the glass color. The laser beam is controlled by a computer system, allowing for precise and intricate designs to be created on the glass surface.





One of the advantages of UV laser marking on colored glass is its versatility. It can be used to mark logos, text, or even complex patterns on various types of glass, including bottles, vases, and decorative items. The process is highly customizable, allowing for different colors, sizes, and shapes of logos to be created.





In terms of durability, UV laser marking on colored glass is known for its long-lasting results. The laser removes or alters the glass color at a molecular level, ensuring that the logo remains intact even with regular use and exposure to environmental factors.





It's worth noting that UV laser marking on colored glass requires specialized equipment and expertise. The laser parameters, such as power, speed, and frequency, need to be carefully calibrated to achieve the desired results without damaging the glass. Therefore, it is recommended to consult with professionals or companies specializing in UV laser marking for colored glass to ensure the best outcome.
