10W-15W uv laser

5 watt Green laser engraving fruit

Green laser engraving is a fascinating technique that can be used to create unique and eye-catching designs on various surfaces, including fruit. This innovative method involves using a high-powered green laser to etch or engrave patterns, logos, or even text onto the surface of fruits like apples, oranges, or even watermelons.



  • Laser Wavelength:

    532nm
  • Average Output Power :

    5W/10W @30kHz
  • Pulse Width:

    <14ns @30kHz
  • Pulse Repetition Rate :

    10-200kHz
  • Spatial Mode:

    TEM00
  • Beam Quality (㎡) :

    <1.2
  • Beam Diameter:

    0.8±0.2mm Measured at window
  • Beam Full Divergence Angle :

    <1.2mrad
  • Beam Circularity:

    >90%
  • Pulse-To-Pulse Stability:

    <2% RMS/@30kHz
  • Average Power Stability :

    <5% RMS/8hr
  • Beam-Pointing Drift:

    <30μrad/℃
  • Polarization Ratio:

    >100:1
  • Polarization Orientation:

    Horizontal
  • Operating Temp. & RH:

    10℃ to 30℃ | <80%
  • Storage Temp. & RH:

    -20℃ to 65℃ | <90 %
  • Electricity Requirement :

    100-240VAC |50/60Hz | Single phase
  • Power Consumption:

    <500W
  • Warranty :

    18months
  • Product Detail
  • Video

uv laser

Green laser engraving is a fascinating technique that can be used to create unique and eye-catching designs on various surfaces, including fruit. This innovative method involves using a high-powered green laser to etch or engrave patterns, logos, or even text onto the surface of fruits like apples, oranges, or even watermelons.

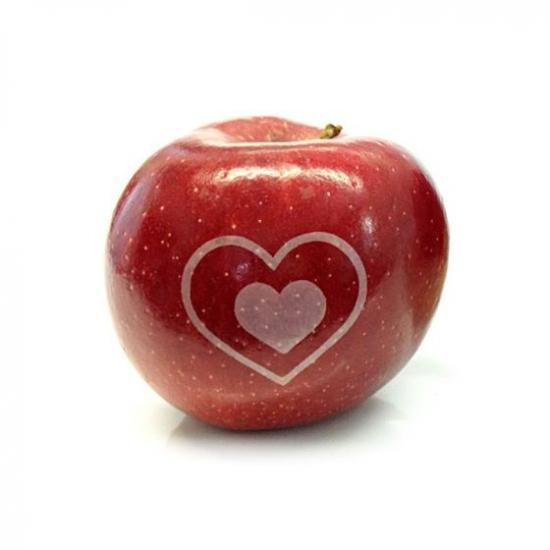

green laser mark fruit



The process of green laser engraving fruit starts with selecting the desired fruit and cleaning it thoroughly to ensure a smooth and even surface. Then, a high-powered green laser is used to create the desired design by removing a thin layer of the fruit's skin. The laser beam is precisely controlled to ensure accuracy and precision in the engraving process.





One of the advantages of 5w green laser engraving is that it can create intricate and detailed designs on the fruit's surface. The green laser light is absorbed by the fruit's skin, causing it to heat up and vaporize, leaving behind a permanent mark. The depth of the engraving can be adjusted based on the desired effect, allowing for both shallow and deep engravings.





Green laser engraving fruit not only adds a visually appealing element to the fruit but also serves as a unique way to brand or personalize fruits for special occasions, events, or marketing purposes. It can be used to engrave logos, messages, or even QR codes onto the fruit's surface, making it an excellent tool for promotional activities or corporate gifting.





It's worth noting that green laser engraving should be done with caution and by trained professionals. Safety measures, such as wearing protective eyewear and ensuring proper ventilation, should be to prevent any potential hazards.





In conclusion, green laser engraving fruit is an innovative and creative technique that allows for the customization and personalization of fruits. Whether it's for decorative purposes or branding, this method offers a unique way to make fruits stand out and leave a lasting impression.
