10W-15W uv laser

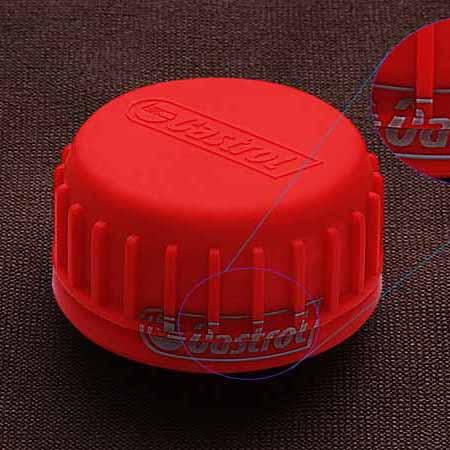

5 watt UV laser Cold Marking plastic bottle caps

In the world of packaging, the need for clear and durable markings on bottle caps is of utmost importance. As industries strive for enhanced product identification and traceability, the demand for more efficient and precise marking solutions escalates. In this regard, the advent of 5-watt UV laser technology has revolutionized the field, presenting an unparalleled method of cold marking plastic bottle caps with exceptional precision and longevity.



  • Laser Wavelength:

    354.7nm
  • Average Output Power :

    3W-10W @30kHz
  • Pulse Width:

    <12ns @ 30kHz
  • Pulse Repetition Rate :

    10-200kHz
  • Beam Quality (㎡) :

    <1.2
  • Beam Diameter :

    0.8±0.2mm Measured at window
  • Beam Full Divergence Angle :

    <2mrad
  • Beam Circularity :

    >90%
  • Pulse-to-Pulse Stability :

    <2% RMS/@30kHz
  • Average Power Stability :

    <5% RMS/8hr
  • Beam-Pointing Drift :

    <30μrad/℃
  • Polarization Ratio :

    >100:1
  • Polarization Orientation :

    Horizontal
  • Operating Temp. & RH :

    10℃ to 30℃ | <80%
  • Storage Temp. & RH) :

    -20℃ to 65℃ | <90 %
  • Electricity Requirement :

    100-240VAC |50/60Hz | Single phase
  • Power Consumption :

    <500W
  • Warranty :

    18months
  • Product Detail
  • Video

uv laser

5 watt UV laser Cold Marking plastic bottle caps

Cold Marking: The Unparalleled Precision of 5-Watt UV Laser Technology on Plastic Bottle Caps

In the world of packaging, the need for clear and durable markings on bottle caps is of utmost importance. As industries strive for enhanced product identification and traceability, the demand for more efficient and precise marking solutions escalates. In this regard, the advent of 5-watt UV laser technology has revolutionized the field, presenting an unparalleled method of cold marking plastic bottle caps with exceptional precision and longevity.



Traditionally, marking bottle caps on production lines posed challenges such as fading ink, illegible codes, and inconsistent results. However, the introduction of 5-watt UV laser technology has effectively addressed these issues, paving the way for a groundbreaking approach to marking that guarantees enduring clarity and readability.



Central to this transformative technology is the incredible power of the 5-watt UV laser source. Emitting high-energy ultraviolet light, this laser technology produces a concentrated and controlled beam that creates indelible marks on plastic bottle caps. Unlike other marking methods that rely on ink or physical contact, the cold marking process utilizing 5-watt UV laser technology ensures the structural integrity and hygiene standards of the caps remain intact. Moreover, its non-contact nature eliminates the risk of contamination, making it ideal for industries with stringent cleanliness requirements.



Precision is the hallmark of 5-watt UV laser technology. Its finely focused beam enables micron-level accuracy, allowing for the creation of intricate and consistent markings on plastic bottle caps. Manufacturers can rely on this advanced technology to produce clear and legible codes, logos, and identification marks, ensuring seamless product tracking and authentication throughout the supply chain. This precision also enables the inclusion of intricate designs, barcodes, and other essential information, meeting the evolving needs of industries and consumers alike.



Yet, the benefits of 5-watt UV laser technology extend beyond its precision. The cold marking process offers unmatched durability, ensuring that the markings withstand exposure to various environmental factors such as moisture, heat, and chemicals. This longevity safeguards the integrity of the information imprinted on the caps, guaranteeing that vital details remain visible and traceable throughout the product's lifecycle. Manufacturers can thus confidently maintain the highest standards of quality and safety while meeting regulatory requirements.



Furthermore, the versatility of 5-watt UV laser technology empowers manufacturers to mark a wide range of plastic bottle caps effortlessly. Regardless of the cap material, color, texture, or shape, this technology adapts seamlessly to produce consistent and legible marks. With the ability to accommodate different production line speeds, this flexible solution ensures efficiency without compromising the quality of the markings. Manufacturers can, therefore, streamline their operations and meet the demands of high-volume production while maintaining the precision and clarity of the markings.



In an era where sustainability is paramount, the implementation of 5-watt UV laser technology brings additional environmental benefits. Unlike traditional ink-based marking methods that produce waste and require replenishment, the cold marking process using UV lasers eliminates the need for consumables, contributing to a reduced carbon footprint. By prioritizing eco-friendly solutions without compromising on quality, manufacturers can align their practices with evolving global sustainability initiatives.



In conclusion, the integration of 5-watt UV laser technology has transformed the art of marking plastic bottle caps. Its unmatched precision, durability, versatility, and sustainability render it the optimal choice for industries seeking efficient and long-lasting identification solutions. With this technology, manufacturers can ensure the clear and enduring branding of their products while enhancing traceability and meeting regulatory requirements. The era of unreliable and fading markings is now a thing of the past, as the cold marking process utilizing 5-watt UV laser technology paves the way for unparalleled excellence in the packaging industry.
