10W-15W uv laser

5W nanosecond solid-state UV laser marking plastic bottle caps

RFH is a professional manufacturer of nanosecond solid-state lasers, and its UV lasers are highly acclaimed in the market. Recently, a customer in Dongguan purchased a RFH brand 5W UV laser for its laser marking plastic bottle cap production line, and achieved excellent results.

  • Laser Wavelength:

    354.7nm
  • Average Output Power :

    3W-10W @30kHz
  • Pulse Width:

    <12ns @ 30kHz
  • Pulse Repetition Rate :

    10-200kHz
  • Beam Quality (㎡) :

    <1.2
  • Beam Diameter :

    0.8±0.2mm Measured at window
  • Beam Full Divergence Angle :

    <2mrad
  • Beam Circularity :

    >90%
  • Pulse-to-Pulse Stability :

    <2% RMS/@30kHz
  • Average Power Stability :

    <5% RMS/8hr
  • Beam-Pointing Drift :

    <30μrad/℃
  • Polarization Ratio :

    >100:1
  • Polarization Orientation :

    Horizontal
  • Operating Temp. & RH :

    10℃ to 30℃ | <80%
  • Storage Temp. & RH) :

    -20℃ to 65℃ | <90 %
  • Electricity Requirement :

    100-240VAC |50/60Hz | Single phase
  • Power Consumption :

    <500W
  • Warranty :

    18months
  • Product Detail
  • Video

uv laser

5W nanosecond solid-state UV laser marking plastic bottle caps

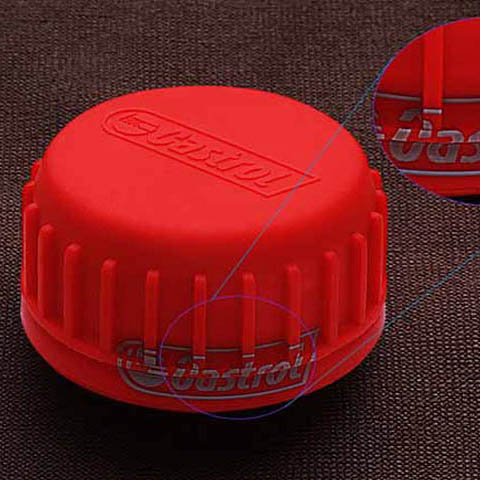

UV laser marking plastic bottle caps



RFH is a professional manufacturer of nanosecond solid-state lasers, and its UV lasers are highly acclaimed in the market. Recently, a customer in Dongguan purchased a RFH brand 5W UV laser for its laser marking plastic bottle cap production line, and achieved excellent results.

As a widely used packaging material in modern life, plastic bottle caps need to be marked during the production process to facilitate identification and management. However, traditional marking methods often cause damage to the surface of plastic bottle caps and affect the appearance quality. Using a 5W UV laser for marking can ensure the quality of the mark without damaging the surface of the bottle cap.



The appearance of 5W ultraviolet laser makes the marking effect more beautiful, and the marked text and pattern are clearer and more recognizable. At the same time, its marking speed is also extremely fast, which greatly improves production efficiency. In addition, the 5W UV laser also has the characteristics of energy saving and environmental protection. Its marking process will not produce any pollutants and waste gas, which meets modern environmental protection requirements.



In modern industrial production, laser marking machines have become one of the indispensable equipment. The laser is one of the core components of the laser marking machine, and the ultraviolet laser is one of the most important in quality and performance. Therefore, choosing a laser with reliable quality is a problem that every customer faces.



It is based on this demand that RFH brand UV lasers have received widespread attention. In the production process of Dongguan customers, RFH brand UV lasers have shown strong performance advantages. Its high-quality laser has stable output, high precision, and long life, which is very suitable for laser marking plastic bottle cap production lines.



At the same time, the RFH brand also maintains a strong R&D strength and production capacity, and its UV lasers are constantly upgraded and improved, and their performance is continuously improved. In the market, its ultraviolet laser has become a highly trusted domestic product, widely praised by customers.



It is a wise choice to choose the RFH brand UV laser, which will bring great convenience and benefits to the production line and the entire production process.
