10W-15W uv laser

Australian customer buy RFH ultraviolet laser source marking ceramic

Recently, one Australian customer who is a manufacturer of ceramic products was seeking a marking solution and came across the high-power UV laser offered by a laser system provider. After extensive research and consultations with the laser experts, the customer decided to invest in this sophisticated technology.



  • Laser Wavelength:

    354.7nm
  • Average Output Power :

    10W/12W/15W @40kHz
  • Pulse Width:

    <20ns @40kHz
  • Pulse Repetition Rate :

    10-200kHz
  • Spatial Mode:

    TEM00
  • Beam Quality (㎡) :

    <1.2
  • Beam Diameter:

    0.8±0.1mm Measured at window
  • Beam Full Divergence Angle :

    <2mrad
  • Beam Circularity:

    >90%
  • Pulse-To-Pulse Stability:

    <3% RMS/@30kHz
  • Average Power Stability :

    <5% RMS/8hr
  • Beam-Pointing Drift:

    <25μrad/℃
  • Polarization Ratio:

    >100:1
  • Polarization Orientation:

    Horizontal
  • Operating Temp. & RH:

    10℃ to 35℃ | <80%
  • Storage Temp. & RH:

    10℃ to 35℃ | <90 %
  • Electricity Requirement :

    100-240VAC |50/60Hz | Single phase
  • Power Consumption:

    <800W
  • Warranty :

    18months
  • Product Detail
  • Video

uv laser

In Australia, there is a growing demand for high-quality laser marking systems that can work effectively on ceramics and other similar materials. With the rising popularity of ceramic products, manufacturers are seeking cost-effective solutions for permanent marking that are also efficient and precise. And this is where high-power UV lasers come in – providing a versatile and reliable solution for all marking needs.

Recently, one Australian customer who is a manufacturer of ceramic products was seeking a marking solution and came across the high-power UV laser offered by a laser system provider. After extensive research and consultations with the laser experts, the customer decided to invest in this sophisticated technology.



Unlike traditional marking methods like inkjet printing and labeling, which are not suitable for marking ceramics due to their fragile and irregular surfaces, laser marking delivers reliable, high-quality, permanent marks that are resistant to wear and tear.

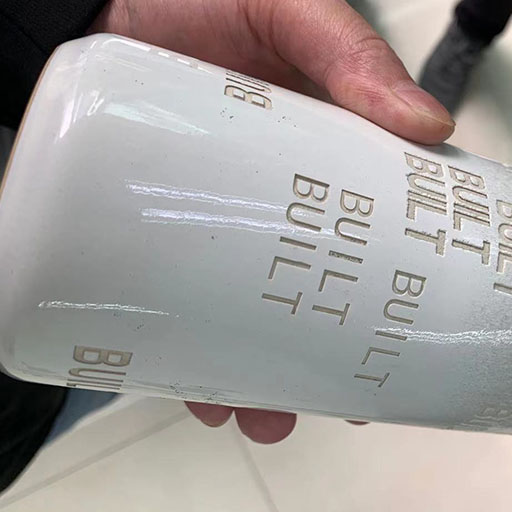

marking ceramics

The high-power UV laser is a perfect choice for this application due to its unique characteristics. Firstly, the laser generates a beam that is highly efficient in interacting with ceramic surfaces, allowing for easy, precise, and precise marking. Secondly, the UV laser is more energy-efficient and delivers much higher speeds than other types of lasers, translating into cost savings and higher throughput.



Another crucial advantage of the high-power UV laser is its ability to generate fine and intricate marks that are readable and scannable even at small sizes. This is particularly important for the customer, as they need to embed unique identification codes, serial numbers, and other essential information on their ceramic products.



Furthermore, the UV laser produces minimal heat. As a result, there is no damage to the material, no deformation or distortion, and no discoloration. It also contributes to the sustainability of the manufacturing process by ensuring that the ceramic products retain their original qualities.



In conclusion, the high-power UV laser is an efficient, precise, and versatile tool in the manufacturing industry, especially for marking ceramics. The Australian customer's decision to invest in this laser technology is a testament to the value it brings to the manufacturing process, from improved efficiency and cost savings to reliable and permanent markings. As more industries embrace ceramic products, the demand for laser marking systems such as the high-power UV laser will only continue to increase.
