10W-15W uv laser

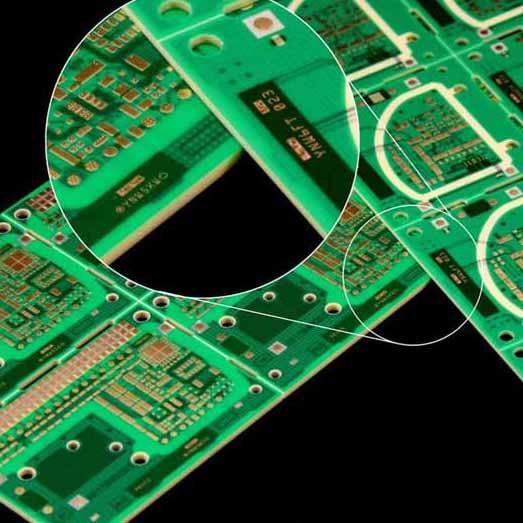

Green laser cutting PCB / FPC board

Green Laser is an advanced equipment specially designed for cutting PCB/FPC routing boards. It adopts green laser technology, featuring high precision, high speed and high efficiency, bringing you an unprecedented cutting experience.

  • Laser Wavelength:

    532nm
  • Average Output Power :

    18W-35W @40kHz
  • Pulse Width:

    <7-8ns @40kHz
  • Pulse Repetition Rate :

    10-200kHz
  • Spatial Mode:

    TEM00
  • Beam Quality (㎡) :

    <1.2
  • Beam Diameter:

    2.2±0.2mm Measured at window
  • Beam Full Divergence Angle :

    <0.5mrad
  • Beam Circularity:

    >90%
  • Pulse-To-Pulse Stability:

    <3% RMS/@30kHz
  • Average Power Stability :

    <5% RMS/8hr
  • Beam-Pointing Drift:

    <30μrad/℃
  • Polarization Ratio:

    >100:1
  • Polarization Orientation:

    Horizontal
  • Operating Temp. & RH:

    10℃ to 35℃ | <80%
  • Storage Temp. & RH:

    -20℃ to 65℃ | <90 %
  • Electricity Requirement :

    100-240VAC |50/60Hz | Single phase
  • Power Consumption:

    <1000W
  • Warranty :

    18months
  • Product Detail
  • Video

uv laser

Green laser cutting PCB / FPC routing board

Dear readers, have you ever wondered how to efficiently cut PCB/FPC routing boards? Now, we introduce to you a revolutionary product - green laser, which will become your good helper in the cutting field!

Green Laser is an advanced equipment specially designed for cutting PCB/FPC routing boards. It adopts green laser technology, featuring high precision, high speed and high efficiency, bringing you an unprecedented cutting experience.



Green lasers offer significant advantages over other cutting methods. First, it does not generate any mechanical stress, thus avoiding cutting quality problems due to stress concentration. Secondly, it has high precision and high speed, which can quickly and accurately complete the cutting of various complex shapes. Finally, the green laser is also environmentally friendly and energy-saving, which can save you energy costs.



The use of green lasers to cut PCB/FPC routing boards can not only improve production efficiency, but also reduce production costs. In addition, it can provide better cutting quality and wider range of applications, bringing more possibilities to your business.



If you are looking for an efficient, accurate and environmentally friendly cutting equipment, then Green Laser is definitely your best choice! Come and give it a try and let it reach its full potential in your production!
