10W-15W uv laser

Korean customer buying RFH high power uv laser cutting Flexible PCB

The world of flexible PCBs has witnessed a groundbreaking revolution with the introduction of the RFH high power UV laser. In the heart of Korea, a discerning customer recognized the remarkable capabilities of this cutting-edge technology and embraced its transformative power for their operations. Join us as we delve into the intricacies of this remarkable union between innovation and excellence.



  • Laser Wavelength:

    354.7nm
  • Average Output Power :

    3W-10W @30kHz
  • Pulse Width:

    <12ns @ 30kHz
  • Pulse Repetition Rate :

    10-200kHz
  • Beam Quality (㎡) :

    <1.2
  • Beam Diameter :

    0.8±0.2mm Measured at window
  • Beam Full Divergence Angle :

    <2mrad
  • Beam Circularity :

    >90%
  • Pulse-to-Pulse Stability :

    <2% RMS/@30kHz
  • Average Power Stability :

    <5% RMS/8hr
  • Beam-Pointing Drift :

    <30μrad/℃
  • Polarization Ratio :

    >100:1
  • Polarization Orientation :

    Horizontal
  • Operating Temp. & RH :

    10℃ to 30℃ | <80%
  • Storage Temp. & RH) :

    -20℃ to 65℃ | <90 %
  • Electricity Requirement :

    100-240VAC |50/60Hz | Single phase
  • Power Consumption :

    <500W
  • Warranty :

    18months
  • Product Detail
  • Video

uv laser

Korean customer buying RFH high power uv laser cutting Flexible PCB

The world of flexible PCBs has witnessed a groundbreaking revolution with the introduction of the RFH high power UV laser. In the heart of Korea, a discerning customer recognized the remarkable capabilities of this cutting-edge technology and embraced its transformative power for their operations. Join us as we delve into the intricacies of this remarkable union between innovation and excellence.

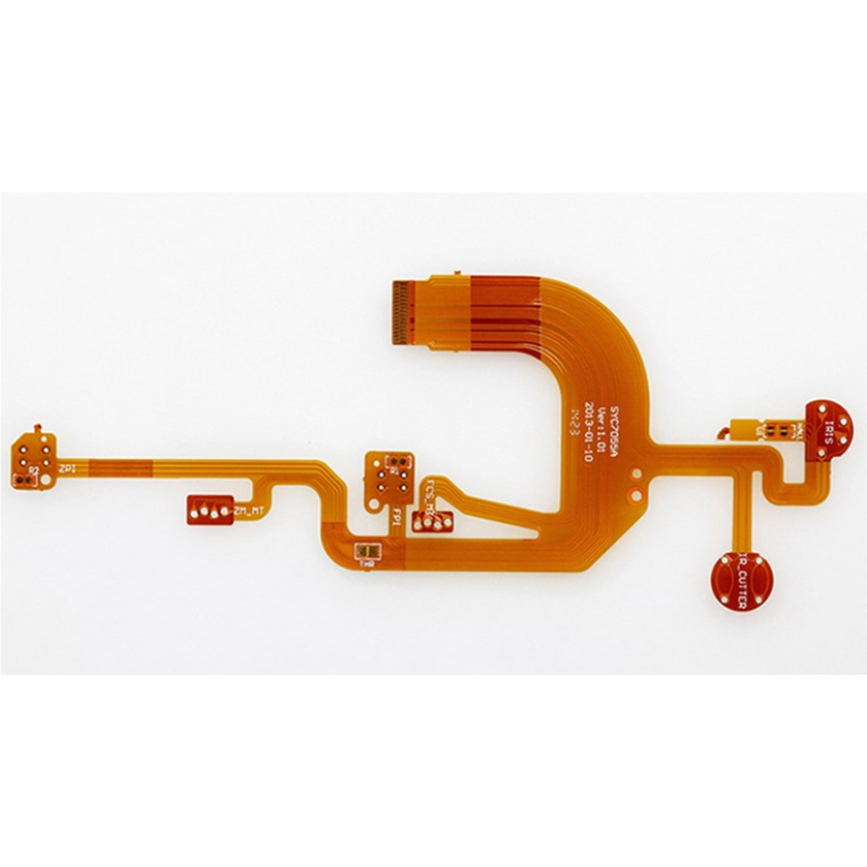

cutting FPC

With a spiral of creativity and ingenuity, the RFH high power UV laser breathes new life into the realm of flexible PCB cutting. This state-of-the-art system marries precision with flexibility, enabling intricate and flawlessly executed cuts that were once mere aspirations. Unburdened by limitations and inefficiencies, the RFH laser directs its power towards delivering results that exceed expectations.



By harnessing the seamless integration provided by the RFH high power UV laser, our Korean customer experienced a seamless transition into a new era of versatility and accuracy. The laser's intelligent control system eliminates any potential for error and empowers the customer to achieve immaculate cuts, optimizing their production capabilities to unparalleled levels. With every stroke of the laser, an unparalleled level of intricacy and detail is gracefully etched into existence.



The introduction of the RFH laser has had a profound impact on the customer's brand reputation. Every impeccably cut flexible PCB stands as a testament to their commitment to excellence, instilling confidence in partners and clients alike. The laser's ability to deliver flawless precision has elevated the customer's position within the industry, firmly establishing them as a trailblazer and visionary.



In conclusion, the RFH high power UV laser has revolutionized the realm of flexible PCB cutting, empowering our Korean customer to reach new heights of precision and versatility. Through its immaculate integration and transformative capabilities, the RFH laser has paved the way for a future where ingenuity and quality intersect. As we peer into the horizon of possibilities, we are reminded that this technological marvel is not simply a tool, but a gateway to a new era of limitless potential.
