10W-15W uv laser

Korean laser engraving machine customer buys 5w green laser to mark PVC pipe

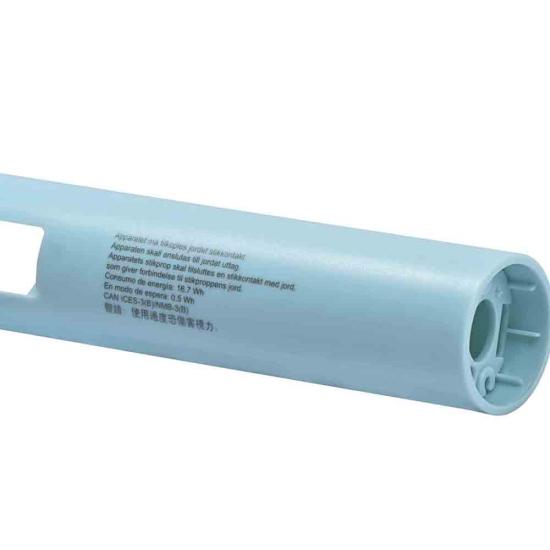

Recently, an enthusiastic laser engraving machine user in South Korea chose a 5W green laser for marking PVC pipes. This novel application method provides unprecedented convenience and innovation for the manufacture and marking of PVC pipes.

  • Laser Wavelength:

    532nm
  • Average Output Power :

    5W/10W @30kHz
  • Pulse Width:

    <14ns @30kHz
  • Pulse Repetition Rate :

    10-200kHz
  • Spatial Mode:

    TEM00
  • Beam Quality (㎡) :

    <1.2
  • Beam Diameter:

    0.8±0.2mm Measured at window
  • Beam Full Divergence Angle :

    <1.2mrad
  • Beam Circularity:

    >90%
  • Pulse-To-Pulse Stability:

    <2% RMS/@30kHz
  • Average Power Stability :

    <5% RMS/8hr
  • Beam-Pointing Drift:

    <30μrad/℃
  • Polarization Ratio:

    >100:1
  • Polarization Orientation:

    Horizontal
  • Operating Temp. & RH:

    10℃ to 30℃ | <80%
  • Storage Temp. & RH:

    -20℃ to 65℃ | <90 %
  • Electricity Requirement :

    100-240VAC |50/60Hz | Single phase
  • Power Consumption:

    <500W
  • Warranty :

    18months
  • Product Detail
  • Video

uv laser

Korean laser engraving machine customer buys 5w green laser to mark PVC pipe

laser mark plastic

Recently, an enthusiastic laser engraving machine user in South Korea chose a 5W green laser for marking PVC pipes. This novel application method provides unprecedented convenience and innovation for the manufacture and marking of PVC pipes.

As a brand new technology, green laser is gradually emerging in the laser engraving industry. Compared with the traditional red laser, the green laser has higher beam quality and more delicate engraving effect, which makes it have a huge advantage in the marking industry. As a common building material, PVC pipes have always been the focus of manufacturers and users for their identification and marking. With the help of the accuracy and efficiency of the green laser, the needs of users can be quickly met.



The arrival of this 5W green laser not only significantly improves the production efficiency of users, but also leads the development direction of the industry. Traditional marking methods often fail to meet the pursuit of details and quality, while green lasers have won wide acclaim for their precise marking effects. Therefore, by using the green laser, users can easily achieve clear marking, pattern engraving and text display on PVC pipes, adding a unique charm to the quality and aesthetics of the product.



Looking ahead, we are confident that laser engraving technology will further promote the innovation and development of the PVC pipe industry. Not only limited to marking and marking, the green laser can also realize fine engraving, cutting and other applications in the process of PVC pipe processing, further realizing the needs of individualization and customization. The continuous advancement of laser technology will bring more application possibilities to the PVC pipe industry and create greater business opportunities and competitive advantages for users.



Whether it is for users or the entire industry, the purchase of 5W green laser by Korean laser engraving machine users is of great significance. This marks the in-depth application of laser technology in the field of PVC pipes, and also indicates that laser technology will continue to play a greater role in the future development. Let us look forward to laser engraving technology bringing a better future to the PVC pipe industry!
