10W-15W uv laser

RFH 20w dpss ultraviolet laser for metal surface marking

RFH is a well-known brand that produces high-quality and efficient uv laser . One of their most popular and highly reliable products is the 20w DPSS Ultraviolet Laser. This versatile machine is specifically designed to mark on metal surfaces, making it an essential tool for a wide range of industries.



  • Laser Wavelength:

    354.7nm
  • Average Output Power :

    10W/12W/15W @40kHz
  • Pulse Width:

    <20ns @40kHz
  • Pulse Repetition Rate :

    10-200kHz
  • Spatial Mode:

    TEM00
  • Beam Quality (㎡) :

    <1.2
  • Beam Diameter:

    0.8±0.1mm Measured at window
  • Beam Full Divergence Angle :

    <2mrad
  • Beam Circularity:

    >90%
  • Pulse-To-Pulse Stability:

    <3% RMS/@30kHz
  • Average Power Stability :

    <5% RMS/8hr
  • Beam-Pointing Drift:

    <25μrad/℃
  • Polarization Ratio:

    >100:1
  • Polarization Orientation:

    Horizontal
  • Operating Temp. & RH:

    10℃ to 35℃ | <80%
  • Storage Temp. & RH:

    10℃ to 35℃ | <90 %
  • Electricity Requirement :

    100-240VAC |50/60Hz | Single phase
  • Power Consumption:

    <800W
  • Warranty :

    18months
  • Product Detail
  • Video

uv laser

RFH is a well-known brand that produces high-quality and efficient uv laser . One of their most popular and highly reliable products is the 20w DPSS Ultraviolet Laser. This versatile machine is specifically designed to mark on metal surfaces, making it an essential tool for a wide range of industries.

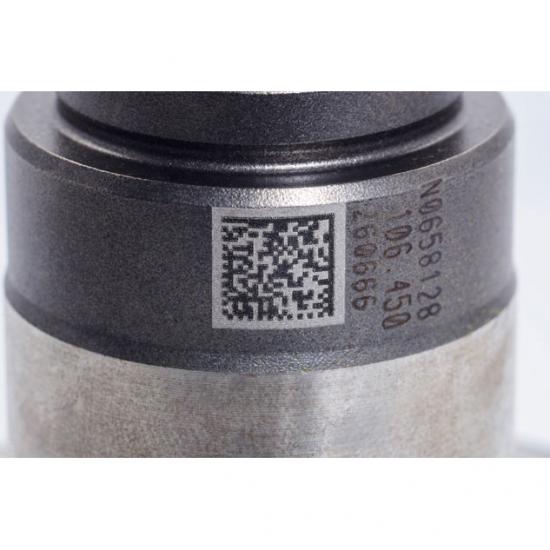

Metal materials are ubiquitous, and they are used in various applications, including manufacturing, aerospace, automotive, and construction. Marking metals is a crucial process that enables manufacturers to track and trace their products, ensure quality control, and enhance branding. This is where the RFH 20w DPSS Ultraviolet Laser comes in handy. It can mark on metal surfaces with high precision, speed, and accuracy, making it an indispensable tool for any business that deals with metal products.



The RFH 20w DPSS Ultraviolet Laser machine is built with state-of-the-art technology, which ensures its efficiency and reliability. It uses a high-power laser source that emits a concentrated beam of ultraviolet light, which is ideal for marking metals. The laser beam is directed to the metal surface, where it creates a permanent and precise marking. The machine uses a non-contact marking process, which means that the metal surface is not damaged during the marking process.



The RFH 20w DPSS Ultraviolet Laser machine is equipped with advanced features that make it easy to operate and maintain. It has a user-friendly interface that allows operators to customize their marking settings, such as the depth, size, and intensity of the marking. The machine is also designed to be easy to maintain, with minimal downtime. It has a long lifespan, which means that businesses can enjoy high-quality markings for an extended period.



Another advantage of the RFH 20w DPSS Ultraviolet Laser machine is its versatility. It can mark on various types of metals, including stainless steel, aluminum, brass, and copper. The machine is also capable of marking on curved and irregular surfaces, making it perfect for complex metal products.



In conclusion, the RFH 20w DPSS Ultraviolet Laser machine is an excellent investment for any business that deals with metal products. It provides high-quality, precise, and permanent markings on different types of metals, making it a versatile tool for various applications. Its advanced features, ease of use, and low maintenance requirements make it a cost-effective solution for businesses that want to enhance their product branding, quality control, and traceability. With the RFH 20w DPSS Ultraviolet Laser machine, businesses can achieve their marking needs with efficiency and reliability.
