 RFH 355nm dpss uv Laser for 3d laser crystal engraving

3d laser crystal engraving
3d laser crystal engraving 3d laser crystal engraving 3d laser crystal engraving 3d laser crystal engraving 3d laser crystal engraving

RFH 355nm dpss uv Laser for 3d laser crystal engraving

RFH 355nm DPSS UV laser is widely used in the 3D laser crystal engraving industry due to its excellent beam quality, high precision, and efficiency. As a leading brand in laser technology, RFH has gained a lot of recognition among customers spreading across the globe. The RFH 355nm DPSS UV laser is an epitome of an innovative and market-oriented solution that has been specifically designed to meet the customer's needs.



  • Laser Wavelength:

    354.7nm

  • Average Output Power :

    10W/12W/15W @40kHz

  • Pulse Width:

    <20ns @40kHz

  • Pulse Repetition Rate :

    10-200kHz

  • Spatial Mode:

    TEM00

  • Beam Quality (㎡) :

    <1.2

  • Beam Diameter:

    0.8±0.1mm Measured at window

  • Beam Full Divergence Angle :

    <2mrad

  • Beam Circularity:

    >90%

  • Pulse-To-Pulse Stability:

    <3% RMS/@30kHz

  • Average Power Stability :

    <5% RMS/8hr

  • Beam-Pointing Drift:

    <25μrad/℃

  • Polarization Ratio:

    >100:1

  • Polarization Orientation:

    Horizontal

  • Operating Temp. & RH:

    10℃ to 35℃ | <80%

  • Storage Temp. & RH:

    10℃ to 35℃ | <90 %

  • Electricity Requirement :

    100-240VAC |50/60Hz | Single phase

  • Power Consumption:

    <800W

  • Warranty :

    18months
Inquire now
banner
  • Product Detail
  • Video

uv laser

RFH 355nm DPSS UV laser is widely used in the 3D laser crystal engraving industry due to its excellent beam quality, high precision, and efficiency. As a leading brand in laser technology, RFH has gained a lot of recognition among customers spreading across the globe. The RFH 355nm DPSS UV laser is an epitome of an innovative and market-oriented solution that has been specifically designed to meet the customer's needs.

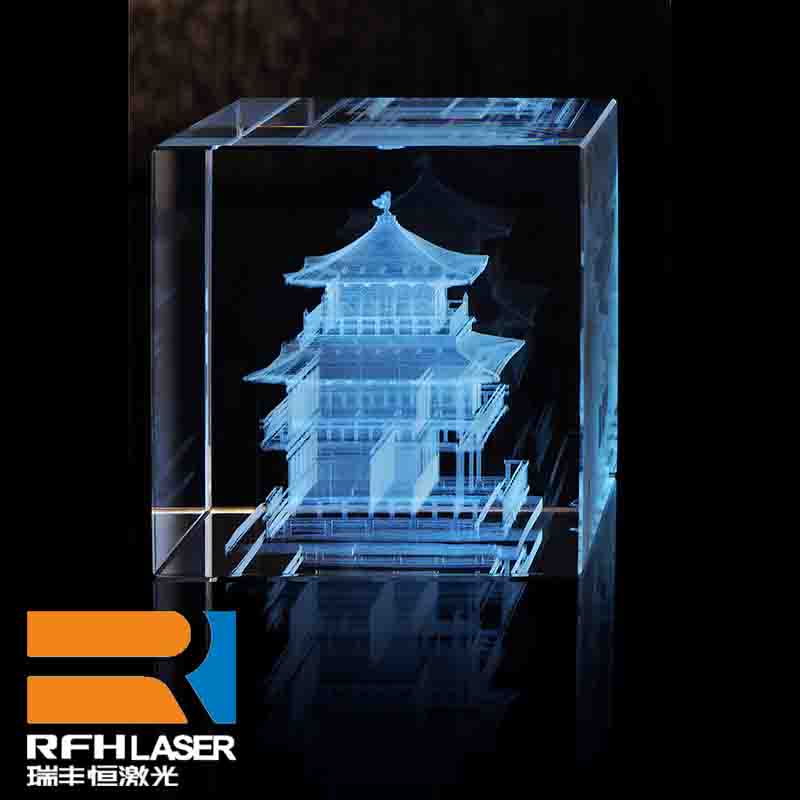

3d engraving glass

One of the most significant benefits of RFH 355nm DPSS UV laser is its high precision. With a minimum spot size of 0.02mm, this laser unit can achieve engraving accuracy as high as 0.01mm, which is perfect for engraving 3D crystal images. With a stable beam quality and uniform power output, the RFH 355nm DPSS UV laser ensures that the engraved crystal images are clear, sharp, and highly detailed.



Another advantage of RFH 355nm DPSS UV laser is its high efficiency. This laser unit is designed to operate at a high repetition rate, which can increase the engraving speed by up to ten times compared to conventional engraving methods. Moreover, the laser unit has a high peak power that enables it to engrave deep within the crystal, producing 3D images that are stunning and eye-catching.



The RFH 355nm DPSS UV laser is also easy to operate and maintain. The stable cavity design ensures that the laser unit has a long lifespan, requiring minimal maintenance. It also has a user-friendly interface that makes it easy for operators to use and set up the parameters.

Moreover, the RFH 355nm DPSS UV laser is eco-friendly, making it an ideal choice for customers who prioritize sustainability. The laser unit operates at low power consumption, which significantly reduces energy consumption and carbon footprint. Additionally, it has a compact and lightweight design, which makes it easy to install and use in various environments.



In conclusion, RFH 355nm DPSS UV laser is a reliable and efficient solution for 3D laser crystal engraving. With its high precision, high efficiency, easy operation, maintenance, and sustainability, it is a perfect investment for customers looking to improve the quality of their 3D laser crystal images. Contact RFH today to learn more about this laser unit and how it can help you achieve your desired results in the 3D laser crystal engraving industry.
