10W-15W uv laser

German customers purchasing RFH 355nm Nanosecond Pulse uv Laser for 3d printing

German customers have recently been purchasing the RFH 355nm Nanosecond Pulse UV Laser for use in 3D printing. The machine is well-suited to the demands of 3D printing, providing high accuracy and durability while also being easy to use and maintain.



  • Laser Wavelength:

    354.7nm
  • Average Output Power :

    3W-10W @30kHz
  • Pulse Width:

    <12ns @ 30kHz
  • Pulse Repetition Rate :

    10-200kHz
  • Beam Quality (㎡) :

    <1.2
  • Beam Diameter :

    0.8±0.2mm Measured at window
  • Beam Full Divergence Angle :

    <2mrad
  • Beam Circularity :

    >90%
  • Pulse-to-Pulse Stability :

    <2% RMS/@30kHz
  • Average Power Stability :

    <5% RMS/8hr
  • Beam-Pointing Drift :

    <30μrad/℃
  • Polarization Ratio :

    >100:1
  • Polarization Orientation :

    Horizontal
  • Operating Temp. & RH :

    10℃ to 30℃ | <80%
  • Storage Temp. & RH) :

    -20℃ to 65℃ | <90 %
  • Electricity Requirement :

    100-240VAC |50/60Hz | Single phase
  • Power Consumption :

    <500W
  • Warranty :

    18months
  • Product Detail
  • Video

uv laser

German customers have recently been purchasing the RFH 355nm Nanosecond Pulse UV Laser for use in 3D printing. The machine is well-suited to the demands of 3D printing, providing high accuracy and durability while also being easy to use and maintain.

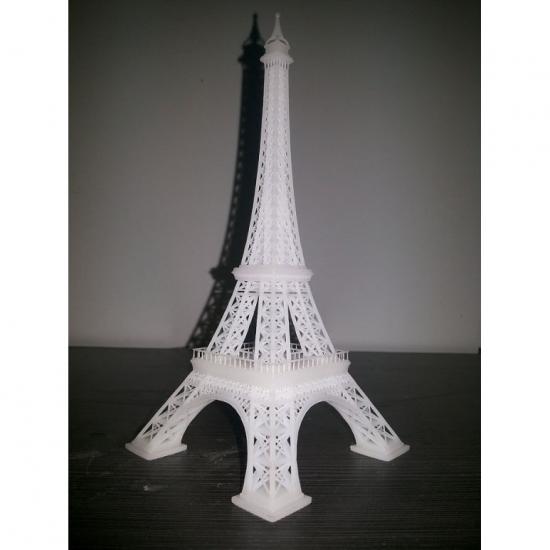

3D printing

One of the key features of the RFH 355nm Nanosecond Pulse UV Laser is its high accuracy, which is crucial in 3D printing. The laser uses a short pulse duration, allowing for precise control over the laser beam and ensuring that the material is solidified accurately. This results in a high-quality 3D printed product that meets the exact specifications of the design.



The RFH 355nm Nanosecond Pulse UV Laser is also highly durable, which is important for use in 3D printing where the machine will be used frequently. The laser is made with high-quality materials and designed to provide reliable, long-term operation, reducing the need for frequent repairs and maintenance.



Another benefit of the RFH 355nm Nanosecond Pulse UV Laser is its ease of use and maintenance. It is designed to be user-friendly, with intuitive controls and a simple interface that makes it easy for users to operate the machine. It also requires minimal maintenance, which saves time and money on repairs and maintenance costs.



The RFH 355nm Nanosecond Pulse UV Laser is also environmentally sustainable, which is an important consideration for many German customers. It uses eco-friendly materials and is designed to minimize energy consumption, making it a sustainable and responsible choice for 3D printing.



In summary, German customers are increasingly choosing the RFH 355nm Nanosecond Pulse UV Laser for 3D printing due to its high accuracy, durability, ease of use, and sustainability. Its use of high-quality materials and innovative design make it an excellent investment for any business looking to achieve high-quality 3D printed products.
