10W-15W uv laser

355nm UV Laser Marking for Logo, Button Label on Plastic

Gone are the days when traditional labeling methods relied on mundane processes. Now, with the advent of cutting-edge UV laser technology, businesses can breathe life into their branding efforts, imbuing their products with an aura of sophistication and finesse.



  • Laser Wavelength:

    354.7nm
  • Average Output Power :

    3W-10W @30kHz
  • Pulse Width:

    <12ns @ 30kHz
  • Pulse Repetition Rate :

    10-200kHz
  • Beam Quality (㎡) :

    <1.2
  • Beam Diameter :

    0.8±0.2mm Measured at window
  • Beam Full Divergence Angle :

    <2mrad
  • Beam Circularity :

    >90%
  • Pulse-to-Pulse Stability :

    <2% RMS/@30kHz
  • Average Power Stability :

    <5% RMS/8hr
  • Beam-Pointing Drift :

    <30μrad/℃
  • Polarization Ratio :

    >100:1
  • Polarization Orientation :

    Horizontal
  • Operating Temp. & RH :

    10℃ to 30℃ | <80%
  • Storage Temp. & RH) :

    -20℃ to 65℃ | <90 %
  • Electricity Requirement :

    100-240VAC |50/60Hz | Single phase
  • Power Consumption :

    <500W
  • Warranty :

    18months
  • Product Detail
  • Video

uv laser

 355nm UV Laser Marking for Logo, Button Label on Plastic

UV Laser Marking: Elevating Logo and Button Label Artistry on Plastic Surfaces

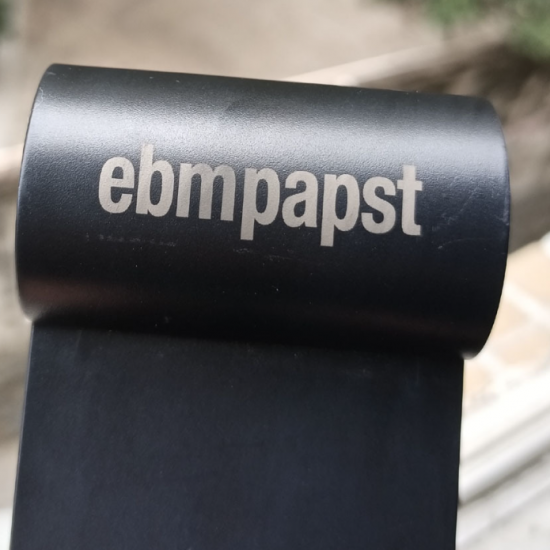

marking plastic logo

In today's dynamic marketplace, businesses are constantly seeking innovative ways to distinguish their products from the competition. One area where this elevation in artistic expression has taken center stage is the field of UV laser marking for logo and button label engraving on plastic.



Gone are the days when traditional labeling methods relied on mundane processes. Now, with the advent of cutting-edge UV laser technology, businesses can breathe life into their branding efforts, imbuing their products with an aura of sophistication and finesse.



UV laser marking, harnessing the power of ultraviolet light, offers a more refined and precise alternative to conventional marking techniques. Its exceptional versatility enables manufacturers to imprint intricate corporate logos, captivating designs, and informative button labels onto various plastic surfaces. Whether it is the sleek facade of a high-end electronic device or the lustrous body of an elegant cosmetic container, UV laser marking ensures a seamless integration of aesthetics and functionality.

This process involves using high-power UV lasers to create a controlled interaction between the laser beam and the plastic substrate. By carefully adjusting the laser intensity, duration, and focus, manufacturers can achieve remarkable results. The laser selectively alters the molecular structure of the plastic, causing a subtle and permanent color change, resulting in an elegant and eye-catching label or logo.



The advantages of UV laser marking in comparison to traditional methods are manifold. Firstly, it guarantees superior durability and longevity. The markings won't fade, crack, or peel off over time, ensuring that the product maintains its visual appeal throughout its lifespan. Secondly, UV laser marking offers impeccable precision, enabling manufacturers to achieve intricate details, sharp lines, and exquisite finishes. This level of flawless craftsmanship enhances brand perception and bolsters customer trust in the product's quality and attention to detail.



Moreover, UV laser marking is an environmentally friendly solution as it eliminates the need for inks, solvents, and other potentially harmful additives. This not only reduces waste but also contributes to a greener manufacturing process, aligning with the ever-growing demand for sustainable practices.



In conclusion, the advent of UV laser marking technology has revolutionized the way logo and button labels are imprinted on plastic surfaces. This cutting-edge technique provides businesses with an exceptional opportunity to elevate their products from mere commodities to symbols of artistic excellence. With its enduring durability, precise execution, and eco-friendliness, UV laser marking ensures that brand aesthetics and functionality coexist harmoniously, captivating consumers and leaving a lasting impression.
