10W-15W uv laser

A Swedish Customer Harnessing the Power of RFH Diode Pumped Solid State UV Laser for Precise ABS Cutting

In the realm where innovation meets precision, the Swedish pursuit of excellence knows no boundaries. It is within this context that a passionate customer from Sweden sought to elevate their craftsmanship by acquiring the revolutionary RFH Diode Pumped Solid State UV Laser. Their objective? To unlock the full potential of ABS cutting with unrivaled accuracy and finesse.



  • Laser Wavelength:

    354.7nm
  • Average Output Power :

    10W/12W/15W @40kHz
  • Pulse Width:

    <20ns @40kHz
  • Pulse Repetition Rate :

    10-200kHz
  • Spatial Mode:

    TEM00
  • Beam Quality (㎡) :

    <1.2
  • Beam Diameter:

    0.8±0.1mm Measured at window
  • Beam Full Divergence Angle :

    <2mrad
  • Beam Circularity:

    >90%
  • Pulse-To-Pulse Stability:

    <3% RMS/@30kHz
  • Average Power Stability :

    <5% RMS/8hr
  • Beam-Pointing Drift:

    <25μrad/℃
  • Polarization Ratio:

    >100:1
  • Polarization Orientation:

    Horizontal
  • Operating Temp. & RH:

    10℃ to 35℃ | <80%
  • Storage Temp. & RH:

    10℃ to 35℃ | <90 %
  • Electricity Requirement :

    100-240VAC |50/60Hz | Single phase
  • Power Consumption:

    <800W
  • Warranty :

    18months
  • Product Detail
  • Video

uv laser

Blazing a Trail: A Swedish Customer Harnessing the Power of RFH Diode Pumped Solid State UV Laser for Precise ABS Cutting

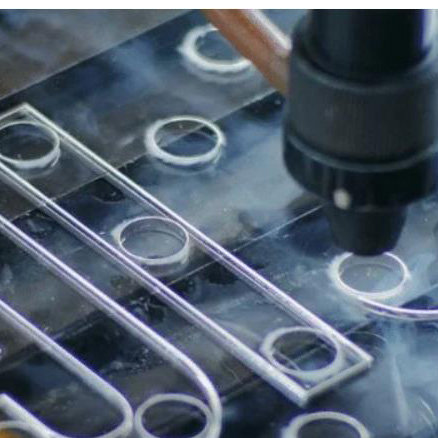

laser cutting abs

In the realm where innovation meets precision, the Swedish pursuit of excellence knows no boundaries. It is within this context that a passionate customer from Sweden sought to elevate their craftsmanship by acquiring the revolutionary RFH Diode Pumped Solid State UV Laser. Their objective? To unlock the full potential of ABS cutting with unrivaled accuracy and finesse.



With a keen eye for detail and a thirst for perfection, our Swedish customer embarked on a quest to procure a laser system that would embody the epitome of cutting-edge technology. Guided by a relentless desire to surpass the ordinary, they identified the RFH Diode Pumped Solid State UV Laser as the beacon of hope in their creative journey.



ABS, renowned for its versatility and strength, posed a unique challenge that required a laser capable of delivering precise, intricate cuts without compromising the material's integrity. In this regard, the RFH Diode Pumped Solid State UV Laser proved to be an invaluable asset. With its exceptional beam quality and unrivaled stability, it forged a path of excellence in ABS cutting, setting new standards for precision.



As the Swedish customer delved deeper into the process, they discovered that the RFH Diode Pumped Solid State UV Laser was not just a mere tool but rather a gateway to artistic exploration. With every pulse from the laser, ABS material yielded gracefully, as intricate designs and complex geometries materialized with astounding clarity. The laser effortlessly harnessed its power to transform ABS into a canvas waiting to be adorned with flawless precision.



The RFH Diode Pumped Solid State UV Laser showcased its versatility, seamlessly adapting to the customer's needs. The ability to adjust laser parameters with ease allowed for the exploration of various depths, angles, and intricacies in ABS cutting. Such flexibility empowered our Swedish customer to push boundaries previously unexplored, expanding horizons and broadening possibilities.



What once stood as a daunting challenge now became an exhilarating journey of creativity and craftsmanship. ABS cutting fused with the power of the RFH Diode Pumped Solid State UV Laser revealed a world brimming with artistic expression and technical prowess. The Swedish customer's creations, brought to life with unparalleled precision, spoke volumes of their dedication to perfection.



Beyond the realms of aesthetics and artistry, the RFH Diode Pumped Solid State UV Laser opened doors to a myriad of industries. From automotive to electronics, from aerospace to medical devices, ABS cutting empowered enterprises to shape their products with immaculate accuracy. The laser's ability to meld technical excellence with artistic finesse revolutionized industries, raising the bar for quality and performance.



In conclusion, the harmonious convergence of Swedish craftsmanship and the RFH Diode Pumped Solid State UV Laser unveiled a new horizon for ABS cutting. It epitomized the relentless spirit of individuals driven to surpass their own limitations and redefine excellence. Let us celebrate this Swedish customer's unwavering pursuit of precision, fueled by a laser system that epitomizes innovation and showcases the inherent beauty of ABS cutting. Together, they have forged a path towards a future where artistic expression and technical expertise coexist seamlessly, inspiring generations to strive for perfection in every endeavor.
