10W-15W uv laser

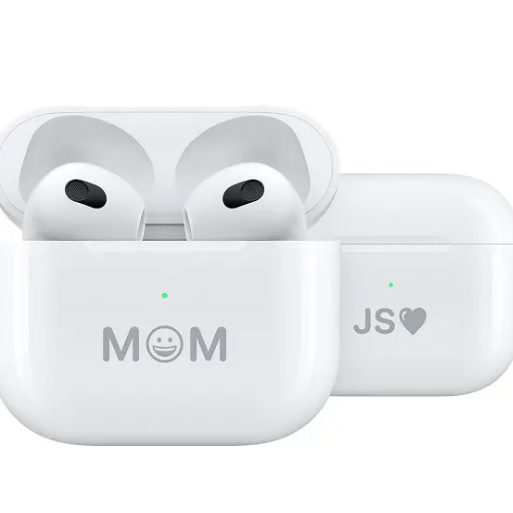

Compact UV lasers have revolutionized the process of engraving earbuds

Compact UV lasers have revolutionized the process of engraving earbuds, creating a remarkable blend of functionality and aesthetics. This innovative technology unlocks a world of possibilities, allowing for precise and intricate designs to be etched onto the surface of these small audio devices.

  • Laser Wavelength:

    354.7nm
  • Average Output Power :

    3W-10W @30kHz
  • Pulse Width:

    <12ns @ 30kHz
  • Pulse Repetition Rate :

    10-200kHz
  • Beam Quality (㎡) :

    <1.2
  • Beam Diameter :

    0.8±0.2mm Measured at window
  • Beam Full Divergence Angle :

    <2mrad
  • Beam Circularity :

    >90%
  • Pulse-to-Pulse Stability :

    <2% RMS/@30kHz
  • Average Power Stability :

    <5% RMS/8hr
  • Beam-Pointing Drift :

    <30μrad/℃
  • Polarization Ratio :

    >100:1
  • Polarization Orientation :

    Horizontal
  • Operating Temp. & RH :

    10℃ to 30℃ | <80%
  • Storage Temp. & RH) :

    -20℃ to 65℃ | <90 %
  • Electricity Requirement :

    100-240VAC |50/60Hz | Single phase
  • Power Consumption :

    <500W
  • Warranty :

    18months
  • Product Detail
  • Video

uv laser

Compact UV lasers have revolutionized the process of engraving earbuds, creating a remarkable blend of functionality and aesthetics. This innovative technology unlocks a world of possibilities, allowing for precise and intricate designs to be etched onto the surface of these small audio devices.

engraving earbuds

The application of high-power UV laser technology in the engraving of earbuds offers numerous advantages. With its exceptional accuracy and efficiency, it allows for intricate patterns and personalized designs to be etched onto the earbud casings with unparalleled precision. Each stroke of the laser beam creates a meticulously detailed impression, resulting in a visually striking and unique end product.



Beyond the purely decorative aspect, the engraving process also enhances the functionality of the earbuds. By carefully etching the surface, manufacturers can incorporate essential information such as product specifications, logos, and serial numbers. This ensures that users can easily identify and distinguish their earbuds, while also adding a touch of sophistication and exclusivity to the overall design.

Given the compact size of earbuds, the use of UV lasers proves to be particularly advantageous. These lasers are capable of focusing their energy into a fine point, enabling precise engraving even on the tiniest of surfaces. Furthermore, the non-contact nature of this technology eliminates the risk of damaging the delicate components of the earbuds during the engraving process, ensuring their functionality remains intact.



The incorporation of UV laser engraving in the production of earbuds opens up new avenues for creativity and customizability. Manufacturers now have the ability to cater to the unique preferences and styles of their customers, offering a wide range of engraved designs to choose from. Whether it be intricate patterns, logos, or personalized messages, each engraving tells a story and transforms these audio devices into individualized accessories.



From a branding perspective, UV laser engraving offers immense opportunities for companies. By incorporating their logos and trademarks into the engraving designs, manufacturers can establish a strong brand identity and enhance brand recognition among consumers. This not only adds value to the earbuds themselves, but also serves as a powerful marketing tool, as users become ambassadors for the brand wherever they go.



In conclusion, the advent of compact UV lasers has revolutionized the process of engraving earbuds. Through their exceptional precision and efficiency, these lasers have transformed these small audio devices into personalized works of art. The marriage of functionality and aesthetics provided by UV laser engraving opens up a world of possibilities for both manufacturers and consumers, elevating the earbud experience to new heights. As we delve deeper into this technology, we can only imagine the surprises and possibilities it holds for the future of earbud customization.
