10W-15W uv laser

Dutch customers purchasing UV lasers to engrave intricate designs on glass.

UV lasers are becoming increasingly popular for a wide range of applications, including cutting and engraving different materials, such as glass. One of the most fascinating trends is that of Dutch customers purchasing UV lasers to engrave intricate designs on glass.



  • Laser Wavelength:

    354.7nm
  • Average Output Power :

    3W-10W @30kHz
  • Pulse Width:

    <12ns @ 30kHz
  • Pulse Repetition Rate :

    10-200kHz
  • Beam Quality (㎡) :

    <1.2
  • Beam Diameter :

    0.8±0.2mm Measured at window
  • Beam Full Divergence Angle :

    <2mrad
  • Beam Circularity :

    >90%
  • Pulse-to-Pulse Stability :

    <2% RMS/@30kHz
  • Average Power Stability :

    <5% RMS/8hr
  • Beam-Pointing Drift :

    <30μrad/℃
  • Polarization Ratio :

    >100:1
  • Polarization Orientation :

    Horizontal
  • Operating Temp. & RH :

    10℃ to 30℃ | <80%
  • Storage Temp. & RH) :

    -20℃ to 65℃ | <90 %
  • Electricity Requirement :

    100-240VAC |50/60Hz | Single phase
  • Power Consumption :

    <500W
  • Warranty :

    18months
  • Product Detail
  • Video

uv laser

UV lasers are becoming increasingly popular for a wide range of applications, including cutting and engraving different materials, such as glass. One of the most fascinating trends is that of Dutch customers purchasing UV lasers to engrave intricate designs on glass.

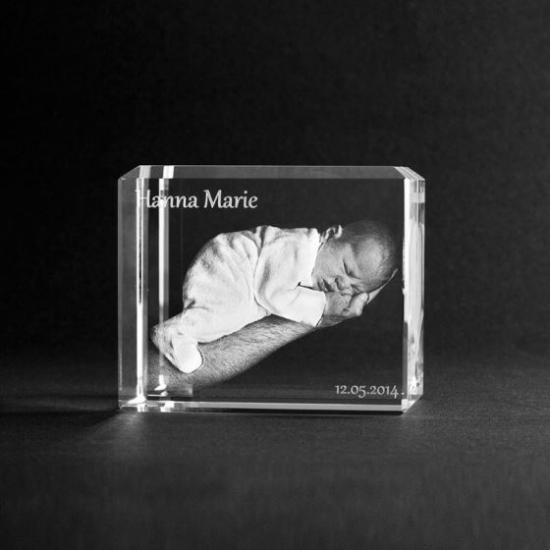

uv laser engraving glass

The Netherlands has a long history of craftsmanship and design, dating back centuries when the country was renowned for its production of fine glassware. In recent years, Dutch customers have been taking advantage of the latest laser technology to produce stunning designs on glass objects, from vases to wine glasses.



The benefits of using UV lasers for glass engraving are plentiful. Unlike traditional engraving methods, such as sandblasting or etching, UV lasers produce highly precise and intricate designs with minimal waste or damage to the material. This makes UV engraving a highly efficient and cost-effective process.

Another significant advantage of UV lasers is that they can produce designs that were previously impossible using other methods. The high level of accuracy allows for detailed patterns and designs, even on curved or irregular surfaces. This gives designers and craftsmen unmatched freedom in terms of creativity and experimentation.



The process of engraving glass with UV lasers is relatively straightforward. The first step is to convert the design into a vector file format. This file is then uploaded to the laser engraving software to create a digital map of the desired design. The glass is then placed in the laser engraver, and the machine begins to etch the design onto the surface. The result is a permanent and highly precise design.



One example of the applications of UV lasers in glass engraving is a Dutch artist who creates handmade glass art pieces, such as vases and bowls. He works in close collaboration with a UV laser engraving company to produce intricate and unique designs on his glass creations. The combination of the artist's vision and the precision of the UV laser produces stunning pieces of art.



In conclusion, Dutch customers purchasing UV lasers to engrave glass is a fascinating trend that is gaining traction in the world of art and craftsmanship. The numerous advantages of using UV lasers, including high precision, efficiency, and the ability to produce intricate designs, have made it an increasingly popular choice in the world of glass engraving. As technology continues to advance, we can expect to see even more incredible applications of UV lasers in the years to come.
