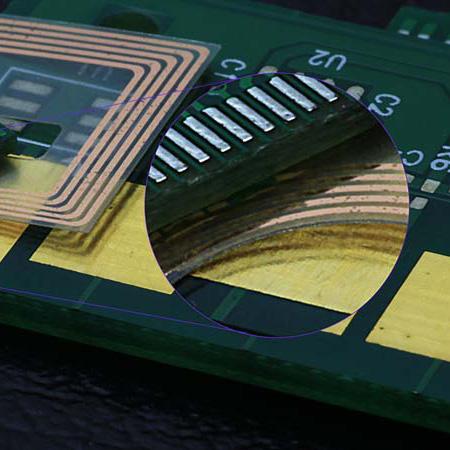

Green laser engraving printed circuit boards
Green laser engraving is a popular technique used in the manufacturing of printed circuit boards (PCBs). It involves using a green laser, typically with a wavelength of around 532nm, to selectively remove material from the surface of the PCB. This process is commonly used for creating high-quality, precise, and intricate designs on PCBs.
One of the main advantages of green laser engraving is its ability to produce fine details with high accuracy. The focused beam of the green laser can remove the copper layer from the PCB, creating clear and well-defined traces. This is especially useful for creating complex circuit patterns and designs that require a high level of precision.
Another benefit of green laser engraving is its speed and efficiency. The green laser can quickly remove the unwanted copper layer, allowing for faster production times compared to traditional etching methods. Additionally, the laser can be controlled digitally, which means that changes to the design can be easily implemented without the need for physical masks or stencils.
Green laser engraving also offers excellent repeatability and consistency. The laser beam can be precisely controlled, ensuring that each PCB produced has the same level of quality and accuracy. This is particularly important in industries where consistency is crucial, such as electronics manufacturing.
Furthermore, green laser engraving is a non-contact process, which means that there is no physical contact between the laser and the PCB. This eliminates the risk of damage to delicate components or circuits during the engraving process. It also reduces the need for maintenance and replacement of tools, as there are no physical bits or blades involved.
In conclusion, green laser engraving is a highly efficient and precise method for engraving printed circuit boards. Its ability to produce intricate designs with high accuracy, along with its speed and repeatability, make it a popular choice in the electronics manufacturing industry.
Excellent III 532 series green DPSS laser, developed and produced by RFH, covers 18w-35w in laser power with short pulse width (<7-8ns@40K) ,superior beam quality (M²<1.2) and perfect laser spot quality (beam circularity >90%). It is particularly suitable for drilling and scribing in ceramics, marking, cutting and drilling in glass & wafer and surface treatment in most of the metal and non-metal materials.
Excellent III 532 series green laser characteristics：
1. 532nm output wavelength, 10 to 200 Hz repetition rate; laser power is 18w-35W; Continuous tuning of repetition rate while maintaining constant pulse energy, superior beam pointing and energy stability make the Excellent III 532 the first choice for micromachining, marking and thin film removal applications
2. Exceptional beam quality (M²<1.2) ，absolutely assured in all repetition rates; relatively short pulse width <7-8ns@40K with little heat transfer to surrounding material; perfect beam spot quality(Beam Circularity>90%)
Close to Gaussian smooth beam profile with low value M² < 1.2 and good focusability are beneficial for applications such as
3. Unique Q-switching technology, adapts a variety of control requirements of laser applications;Online refreshment for harmonic coupling technology;Excellent long term power stability Rugged sealed cavity, Extremely compact size, Simple and robust
4. Digital control technology for the driver, RS232 control interface ensures easy control and integration with laser marking equipment
5. This laser adopts one - style design with compact and reasonable structure, easy installation.
Easy to transport and saves space due to compact and light design
Water cooling，cost-effective and reliable end-pumping technology and amplifier-free DPSS design guarantee easy operation and alignment simple installation and low maintenance costs
6. Industrial production process control technology,provides quality stable products.
RFH - The leading industrial solid-state laser manufacturer
For over 13 years with excellent long term stability and exceptional good beam quality
Production in dust-free plant & rigorous quality control system
From purchasing, pre-production quality check, assembling, finished product testing, warehouse-in inspection, pre-delivery testing to after-sales service, each step is under control to make sure product quality and consistency in both machine parameters and actual running parameters. This is what makes RFH laser lasts longer than its peers.
Top professional team, independent R&D in laser oriented power supply control system
There is a one-to-one correspondence between power supply and laser. The stability of power supply control system determines if the laser can maximize its performance during operation. RFH Laser has independent R&D in power supply technique which enables timely update and improvement of power supply control system module based on the laser’s need. 12-year experience in R&D and a top professional team make RFH laser a reliable and stable laser system.
Core components of oversea brands with guaranteed quality
Pumping, Q-switching and other core components adopt oversea brands. Work with top brand component suppliers of home and abroad. Each component is guaranteed with its quality from the beginning of materials purchasing. This is why users can trust RFH laser.
Green laser+power supply+cooling system sold in a group
Being client-oriented, RFH offers proposal of selling the whole laser system in a group so that the laser system can maximize its performance while maintaining its stability.
Full-digital display, supporting communication with computer, capable of laser’s remote control
Each laser developed and produced by RFH can always remain high quality in industrial and extreme conditions of scientific research. With stable beam quality, high efficiency, best cost performance and high reliability, RFH has earned good reputation in different industries at home and abroad. After 12-year development, RFH has become a reputed brand in nanosecond laser industry.
