10W-15W uv laser

How 355nm UV Laser markers work on leaves.

When it comes to marking or engraving on leaves, 355nm UV Laser markers offer a precise and efficient solution. These laser markers utilize a 355nm wavelength, which falls within the ultraviolet spectrum. This specific wavelength is ideal for working on delicate materials like leaves, as it allows for high precision without causing any damage.



  • Laser Wavelength:

    354.7nm
  • Average Output Power :

    3W-10W @30kHz
  • Pulse Width:

    <12ns @ 30kHz
  • Pulse Repetition Rate :

    10-200kHz
  • Beam Quality (㎡) :

    <1.2
  • Beam Diameter :

    0.8±0.2mm Measured at window
  • Beam Full Divergence Angle :

    <2mrad
  • Beam Circularity :

    >90%
  • Pulse-to-Pulse Stability :

    <2% RMS/@30kHz
  • Average Power Stability :

    <5% RMS/8hr
  • Beam-Pointing Drift :

    <30μrad/℃
  • Polarization Ratio :

    >100:1
  • Polarization Orientation :

    Horizontal
  • Operating Temp. & RH :

    10℃ to 30℃ | <80%
  • Storage Temp. & RH) :

    -20℃ to 65℃ | <90 %
  • Electricity Requirement :

    100-240VAC |50/60Hz | Single phase
  • Power Consumption :

    <500W
  • Warranty :

    18months
  • Product Detail
  • Video

uv laser

How 355nm UV Laser markers work on leaves.



When it comes to marking or engraving on leaves, 355nm UV Laser markers offer a precise and efficient solution. These laser markers utilize a 355nm wavelength, which falls within the ultraviolet spectrum. This specific wavelength is ideal for working on delicate materials like leaves, as it allows for high precision without causing any damage.

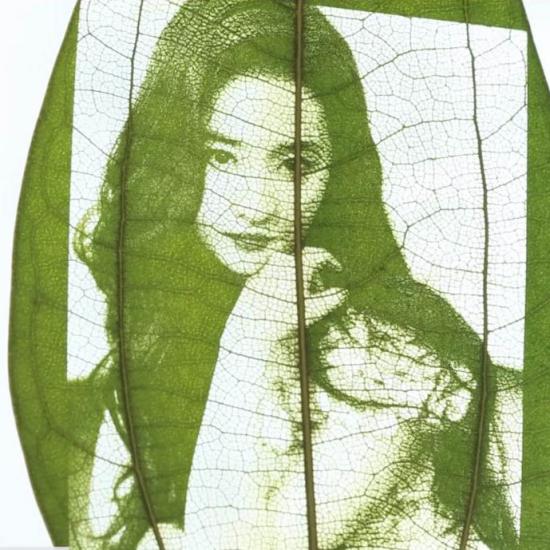

The process of using a 355nm UV Laser marker on leaves involves several steps. First, the leaf is placed on a stable surface, ensuring that it remains flat and steady throughout the marking process. The laser marker is then positioned at the desired location on the leaf.





The 355nm UV Laser marker emits a focused beam of ultraviolet light onto the leaf's surface. This beam interacts with the leaf's pigments and compounds, causing a chemical reaction known as photochemical ablation. This reaction results in the removal of a thin layer of material from the leaf's surface, creating a permanent mark or engraving.





One of the key advantages of using a 355nm UV Laser marker on leaves is its ability to create highly detailed and intricate designs. The focused beam allows for precise control, enabling the creation of fine lines, intricate patterns, and even text. This makes it an ideal tool for artists, researchers, and anyone looking to add a unique touch to their leaf-based projects.





Additionally, the use of a 355nm UV Laser marker ensures that the marking process is non-contact, meaning there is no physical contact between the laser and the leaf. This eliminates the risk of damage or contamination, making it a safe and reliable method for working on delicate materials like leaves.





In conclusion, 355nm UV Laser markers offer a precise and efficient solution for marking and engraving on leaves. Their ability to create highly detailed designs, combined with their non-contact nature, makes them an ideal tool for various applications. Whether you're an artist, a researcher, or simply someone looking to add a unique touch to your leaf-based projects, a 355nm UV Laser marker is definitely worth considering.
