10W-15W uv laser

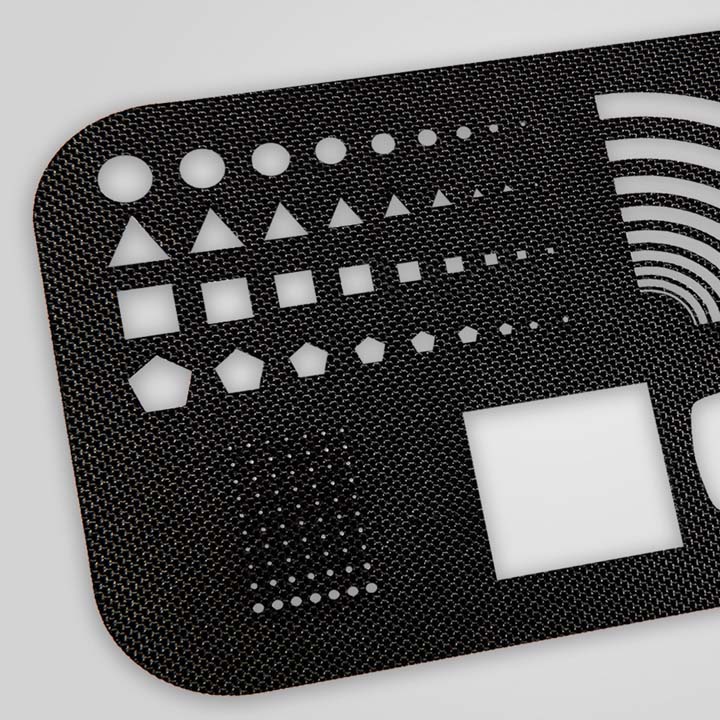

RFH Brand UV DPSS Laser Source Marking on Nylon

In the realm of innovation and industrial advancement, RFH brand UV DPSS lasers have emerged as the epitome of excellence for marking on nylon materials. By seamlessly integrating nylon products with laser technology, RFH has revolutionized the art of permanent marking, offering unparalleled precision and efficiency.



  • Laser Wavelength:

    354.7nm
  • Average Output Power :

    3W-10W @30kHz
  • Pulse Width:

    <12ns @ 30kHz
  • Pulse Repetition Rate :

    10-200kHz
  • Beam Quality (㎡) :

    <1.2
  • Beam Diameter :

    0.8±0.2mm Measured at window
  • Beam Full Divergence Angle :

    <2mrad
  • Beam Circularity :

    >90%
  • Pulse-to-Pulse Stability :

    <2% RMS/@30kHz
  • Average Power Stability :

    <5% RMS/8hr
  • Beam-Pointing Drift :

    <30μrad/℃
  • Polarization Ratio :

    >100:1
  • Polarization Orientation :

    Horizontal
  • Operating Temp. & RH :

    10℃ to 30℃ | <80%
  • Storage Temp. & RH) :

    -20℃ to 65℃ | <90 %
  • Electricity Requirement :

    100-240VAC |50/60Hz | Single phase
  • Power Consumption :

    <500W
  • Warranty :

    18months
  • Product Detail
  • Video

uv laser

 RFH Brand UV DPSS Laser Source Marking on Nylon

UV DPSS Laser Source Marking on Nylon

In the realm of innovation and industrial advancement, RFH brand UV DPSS lasers have emerged as the epitome of excellence for marking on nylon materials. By seamlessly integrating nylon products with laser technology, RFH has revolutionized the art of permanent marking, offering unparalleled precision and efficiency.



The beauty of RFH's UV DPSS laser lies in its ability to effortlessly etch intricate designs onto nylon surfaces with unparalleled finesse. With a delicate touch, the laser source delicately dances across the nylon fabric, leaving behind a trail of refined marks that capture the essence of creativity.



The superior performance of RFH's UV DPSS laser can be attributed to its state-of-the-art technology. Designed with precision and craftsmanship, this laser source boasts exceptional power and stability, ensuring impeccable marking results. The cutting-edge wavelength emitted by the laser interacts harmoniously with the nylon material, enhancing its ability to create captivating patterns and details.

One of the most remarkable aspects of RFH's UV DPSS laser is its versatility. Whether it is a delicate piece of nylon clothing, a sturdy nylon bag, or even intricate nylon artwork, this laser source handles every task with grace. Its remarkable adaptability allows it to deliver consistent and flawless marks, regardless of the complexity or intricacy of the design.



RFH's commitment to advancing the art of marking extends beyond technical excellence. Their team of experts understands that every mark tells a story, and they strive to ensure that the narrative is conveyed through their impeccable craftsmanship. By delicately enhancing the nylon surface, RFH's UV DPSS laser elevates each mark into a masterpiece, breathing life into the very fabric it graces.



In conclusion, RFH brand UV DPSS lasers have redefined the possibilities of marking on nylon materials. With their exquisite precision and artistic finesse, they unlock endless potentials for creativity and self-expression. As we bear witness to the captivating marks left by RFH's lasers on nylon, we are reminded of the profound impact that the marriage of technology and art can have on our world.
