10W-15W uv laser

RFH UV laser S9 will be widely used for high-precision marking of text, patterns and other information

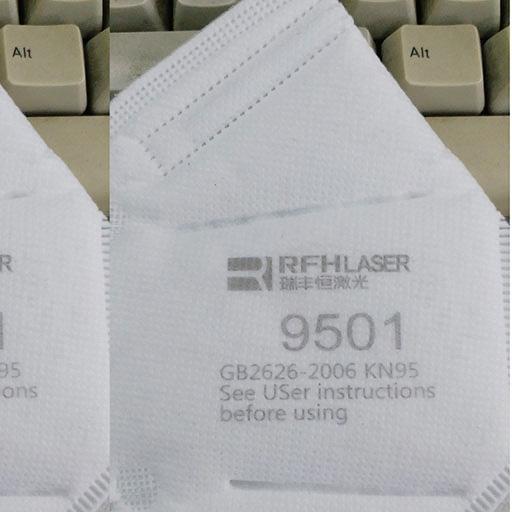

Because the RFH UV laser demonstrated excellent performance in terms of stability, the customer decided to sign a long-term cooperation contract with it. RFH UV laser S9 will be widely used for high-precision marking of text, patterns and other information on various medical devices and pharmaceutical packaging.

  • Laser Wavelength:

    354.7nm
  • Average Output Power :

    3W-10W @30kHz
  • Pulse Width:

    <12ns @ 30kHz
  • Pulse Repetition Rate :

    10-200kHz
  • Beam Quality (㎡) :

    <1.2
  • Beam Diameter :

    0.8±0.2mm Measured at window
  • Beam Full Divergence Angle :

    <2mrad
  • Beam Circularity :

    >90%
  • Pulse-to-Pulse Stability :

    <2% RMS/@30kHz
  • Average Power Stability :

    <5% RMS/8hr
  • Beam-Pointing Drift :

    <30μrad/℃
  • Polarization Ratio :

    >100:1
  • Polarization Orientation :

    Horizontal
  • Operating Temp. & RH :

    10℃ to 30℃ | <80%
  • Storage Temp. & RH) :

    -20℃ to 65℃ | <90 %
  • Electricity Requirement :

    100-240VAC |50/60Hz | Single phase
  • Power Consumption :

    <500W
  • Warranty :

    18months
  • Product Detail
  • Video

uv laser

Because the RFH UV laser demonstrated excellent performance in terms of stability, the customer decided to sign a long-term cooperation contract with it. RFH UV laser S9 will be widely used for high-precision marking of text, patterns and other information on various medical devices and pharmaceutical packaging.



The RFH UV Laser S9 is a laser device using advanced technology and its stability is impressive. In various application scenarios, the equipment can operate continuously and stably and provide high-quality marking results. The stability of this equipment not only reduces the failure rate and improves production efficiency, but also provides more reliable support for our production process.





In terms of marking medical devices and pharmaceutical packaging, the accuracy and stability of the equipment are required to be high. The RFH UV laser S9 accurately completes various tasks with its excellent performance and reliability. This device can clearly print text, patterns and other information on various materials, and the printing effect is long-lasting and not easy to fade. In addition, the RFH UV laser S9 also has the advantages of environmental protection and energy saving, which is in line with the current green environmental protection concept.





In summary, we appreciate the performance and stability of the RFH UV Laser S9 and look forward to establishing a long-term cooperative relationship with it. Through this cooperation, we believe that both parties will achieve mutual benefit and win-win results and jointly promote the prosperity and development of the cause.

S9-Y series solid state pulsed UV laser is ultra compact. The whole part of power supply is integrated into the laser head. This makes the size of the laser more smaller, and the integration into a system more easier and convenient. S9-Y series is of short pulse width(<12ns@30k),superior beam quality(M²<1.2) and perfect laser sport quality(beam circularity>90%).

UV LASER



S9-Y series uv laser characteristics:

1. 355 nm output wavelength, Up to 200 Hz repetition rate; laser power ranging from 3w-10w; Continuous tuning of repetition rate while maintaining constant pulse energy, superior beam pointing and energy stability make the S9-Y the first choice for micromachining, marking and thin film removal applications



2. Exceptional beam quality (M²<1.2) ,absolutely assured in all repetition rates; relatively short pulse width <12ns@30 with little heat transfer to surrounding material; perfect beam spot quality(Beam Circularity>90%)

Close to Gaussian smooth beam profile with low value M² < 1.2 and good focusability are beneficial for applications such as



3. Unique Q-switching technology, adapts a variety of control requirements of laser applications;Online refreshment for harmonic coupling technology;Excellent long term power stability Rugged sealed cavity, Extremely compact size, Simple and robust



4. Digital control technology for the driver,  RS232 control interface ensures easy control and integration with laser marking equipment



5. This laser adopts one - style design with compact and reasonable structure, easy installation.

Easy to transport and saves space due to compact and light design



Water cooling,cost-effective and reliable end-pumping technology and amplifier-free DPSS design guarantee easy operation and alignment simple installation and low maintenance costs



6. Industrial production process control technology,provides quality stable products.

355nm UV laser

UV laser



 RFH - The leading industrial solid-state laser manufacturer



For over 13 years with excellent long term stability and exceptional good beam quality



Production in dust-free plant & rigorous quality control system

From purchasing, pre-production quality check, assembling, finished product testing, warehouse-in inspection, pre-delivery testing to after-sales service, each step is under control to make sure product quality and consistency in both machine parameters and actual running parameters. This is what makes RFH laser lasts longer than its peers.

RFH LASER



The whole part of power supply is integrated into the laser head

Core components of oversea brands with guaranteed quality

Pumping, Q-switching and other core components adopt oversea brands. Work with top brand component suppliers of home and abroad. Each component is guaranteed with its quality from the beginning of materials purchasing. This is why users can trust RFH laser.

355 UV laser



UV laser+cooling system sold in a group

Being client-oriented, RFH offers proposal of selling the whole laser system in a group so that the laser system can maximize its performance while maintaining its stability.

UV laser



Full-digital display, supporting communication with computer, capable of laser’s remote control

Each laser developed and produced by RFH can always remain high quality in industrial and extreme conditions of scientific research. With stable beam quality, high efficiency, best cost performance and high reliability, RFH has earned good reputation in different industries at home and abroad. After 12-year development, RFH has become a reputed brand in nanosecond laser industry.

uv laser | green laser | Ultraviolet lasers | uv dpss laser | nanosecond laser | UV laser source | Solid State Lasers

UV LASER
